Description
General part information

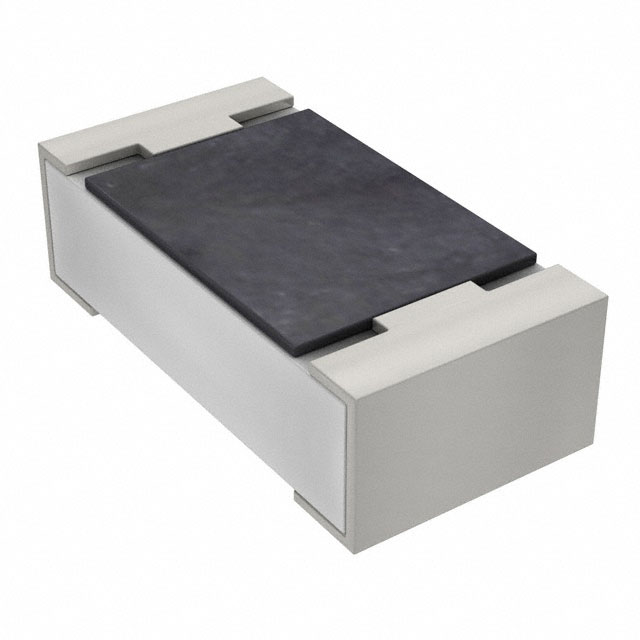

ACPP0603 51R B
51 Ohms ±0.1% 0.063W, 1/16W Chip Resistor 0603 (1608 Metric) Thin Film
Technical Specifications
Parameters and characteristics for this part
| Specification | ACPP0603 51R B |
|---|---|
| Composition | Thin Film |
| Height - Seated (Max) | 0.022 in |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Package Name | 0603 |
| Power (Watts) | 0.063 W |
| Power (Watts) Options | 1/16W |
| Resistance | 51 Ohm |
| Size / Dimension Length | 0.061 in |
| Size / Dimension Width | 0.031 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 0.1 % |
