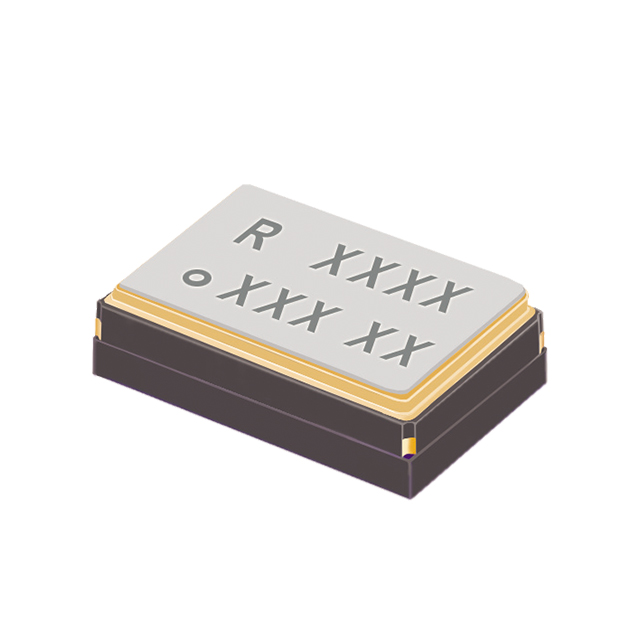

ASTXR-12-26.000MHZ-512883
ObsoleteAbracon LLC
XTAL OSC TCXO 26.0000MHZ SNWV
ASTXR-12-26.000MHZ-512883
ObsoleteAbracon LLC
XTAL OSC TCXO 26.0000MHZ SNWV
Description
General part information
ASTXR-12-26.000MHZ-512883
26 MHz TCXO Clipped Sine Wave Oscillator 1.8V 6-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | ASTXR-12-26.000MHZ-512883 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) | 1.5 mA |
| Frequency | 26 MHz |
| Frequency Stability | 500 ppb |
| Height - Seated (Max) | 0.035 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -30 °C |
| Output | Clipped Sine Wave |
| Package / Case | No Lead, 6-SMD |
| Package Length | 2.5 mm |
| Package Name | 6-SMD |
| Package Width | 2 mm |
| Size / Dimension Length | 0.098 in |
| Size / Dimension Width | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 1.8 V |
