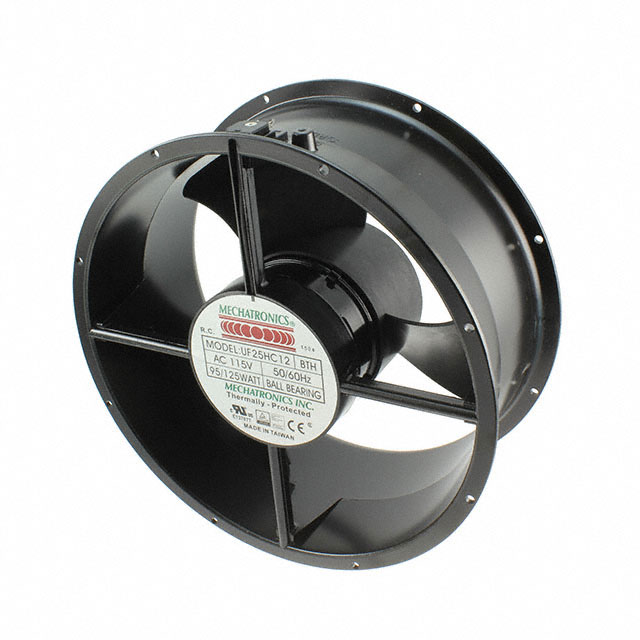

UF25HC12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 254X107MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsAC/DC Fans & Blowers Catalog AC Axial Part Numbering Guide +1

UF25HC12-BTHR

Active

Mechatronics Fan Group

FAN AXIAL 254X107MM 115VAC

Deep-Dive with AI

DocumentsAC/DC Fans & Blowers Catalog AC Axial Part Numbering Guide +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	UF25HC12-BTHR	UF25H Series

Air Flow	23.8 mł/min	23.8 mł/min
Air Flow	850 CFM	850 CFM
Approval Agency	CE, cUL, TUV, UL	CE, cUL, TUV, UL
Bearing Type	Ball	Ball
Current Rating (Amps)	1.07 A	0.5 - 1.07 A
Current Rating (Amps)	-	0.5 A
Current Rating (Amps)	-	1.07 A
Fan Type	Tubeaxial	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor	Dual Voltage, Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum	Aluminum
Noise	65 dB	65 dB
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	-40 °C	-40 °C
Operating Temperature [Min]	-40 °C	-40 °C
Power (Watts)	125 W	125 W
RPM	2750 RPM	2750 RPM
Size / Dimension	Round	Round
Size / Dimension [diameter]	10 in	10 in
Static Pressure	169.4 Pa	169.4 Pa
Static Pressure	0.68 in H2O	0.68 in H2O
Termination	2 Terminals	2 Wire Leads, 2 Terminals
Voltage - Rated	115 VAC	115 - 230 VAC
Voltage - Rated	-	230 VAC
Voltage - Rated	-	115 VAC
Width [x]	107 mm	107 mm

UF25H Series

FAN AXIAL 254X107MM 115/230V WR

Part	Features	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage - Rated [Max]	Voltage - Rated [Min]	Power (Watts)	Noise	Air Flow	Air Flow	Termination	Static Pressure	Static Pressure	Material - Frame	Current Rating (Amps) [Min]	Current Rating (Amps) [Max]	Bearing Type	Fan Type	Approval Agency	Size / Dimension [diameter]	Size / Dimension	Material - Blade	Width [x]	RPM	Current Rating (Amps)	Voltage - Rated
Mechatronics Fan Group UF25HC12/23-BWHR	Dual Voltage, Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	70 °C	70 °C	-40 °C	-40 °C	230 VAC	115 VAC	125 W	65 dB	23.8 mł/min	850 CFM	2 Wire Leads	169.4 Pa	0.68 in H2O	Aluminum	0.5 A	1.07 A	Ball	Tubeaxial	CE, cUL, TUV, UL	10 in	Round	Polybutylene Terephthalate (PBT)	107 mm	2750 RPM
Mechatronics Fan Group UF25HC23-BTHR	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	70 °C	70 °C	-40 °C	-40 °C			125 W	65 dB	23.8 mł/min	850 CFM	2 Terminals	169.4 Pa	0.68 in H2O	Aluminum			Ball	Tubeaxial	CE, cUL, TUV, UL	10 in	Round	Polybutylene Terephthalate (PBT)	107 mm	2750 RPM	0.5 A	230 VAC
Mechatronics Fan Group UF25HC12-BWHR	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	70 °C	70 °C	-40 °C	-40 °C			125 W	65 dB	23.8 mł/min	850 CFM	2 Wire Leads	169.4 Pa	0.68 in H2O	Aluminum			Ball	Tubeaxial	CE, cUL, TUV, UL	10 in	Round	Polybutylene Terephthalate (PBT)	107 mm	2750 RPM	1.07 A	115 VAC
Mechatronics Fan Group UF25HC12-BTHR	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	70 °C	70 °C	-40 °C	-40 °C			125 W	65 dB	23.8 mł/min	850 CFM	2 Terminals	169.4 Pa	0.68 in H2O	Aluminum			Ball	Tubeaxial	CE, cUL, TUV, UL	10 in	Round	Polybutylene Terephthalate (PBT)	107 mm	2750 RPM	1.07 A	115 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 109.59
		10	$ 97.70
		25	$ 93.33
		50	$ 90.15
		100	$ 87.08

Description

General part information

UF25H Series

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 850.0 CFM (23.80m³/min) 2 Terminals
