SD-60
ActiveSame Sky (Formerly CUI Devices)

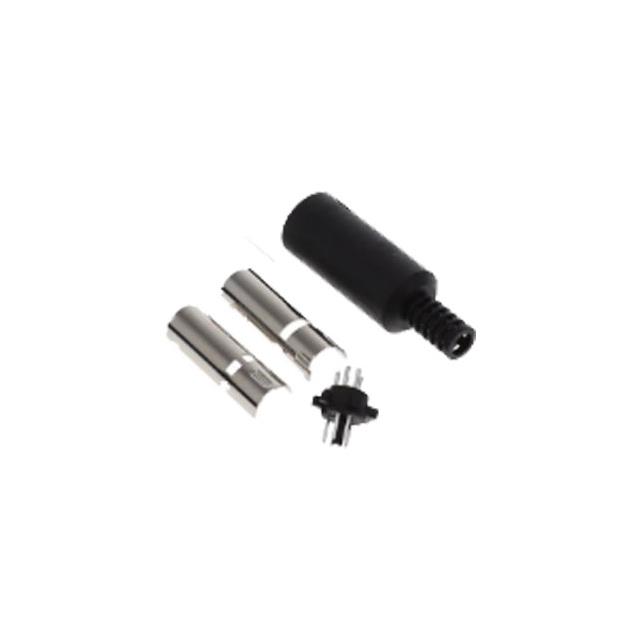

CONN PLUG MALE DIN 6P SOLDER CUP
SD-60
ActiveSame Sky (Formerly CUI Devices)
CONN PLUG MALE DIN 6P SOLDER CUP
Description
General part information
SD-60
6 Position Circular Connector Plug, Male Pins Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | SD-60 |
|---|---|
| Color | Black, Silver |
| Connector Type | Male Pins, Plug |
| Contact Finish - Mating | Nickel |
| Contact Material | Brass |
| Current Rating Options | 2A, 1A |
| Fastening Type | Push-Pull |
| Features | Strain Relief |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 6 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 5 °C |
| Orientation | Keyed |
| Primary Material | Metal |
| Shell Finish | Nickel |
| Shell Material | Steel |
| Shell Size - Insert | DIN (240 Degree) |
| Shielding | Unshielded |
| Termination | Solder Cup |
| Voltage Rating (AC) | 100 VAC |
| Voltage Rating (DC) | 12 VDC |
