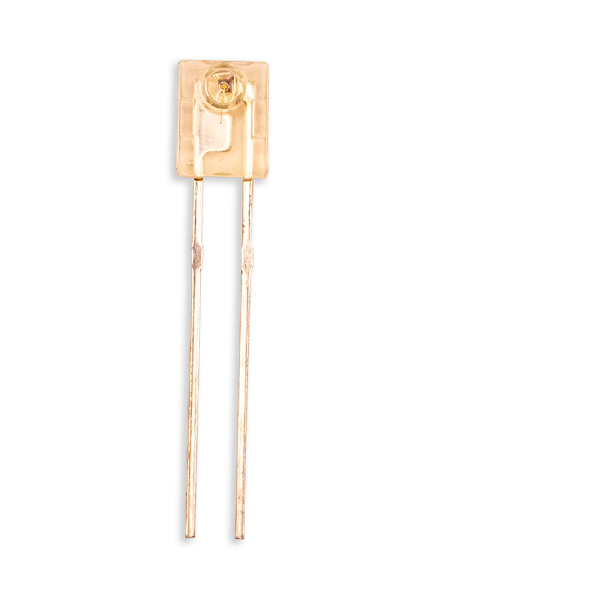

OP145C
ActiveTT Electronics/BI
EMITTER IR 935NM 50MA RADIAL
OP145C
ActiveTT Electronics/BI
EMITTER IR 935NM 50MA RADIAL
Description
General part information
OP145C
EMITTER IR 935NM 50MA RADIAL
Technical Specifications
Parameters and characteristics for this part
| Specification | OP145C |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Side View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min | 0.2 mW/cm² |
| Type | Infrared (IR) |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 935 nm |
