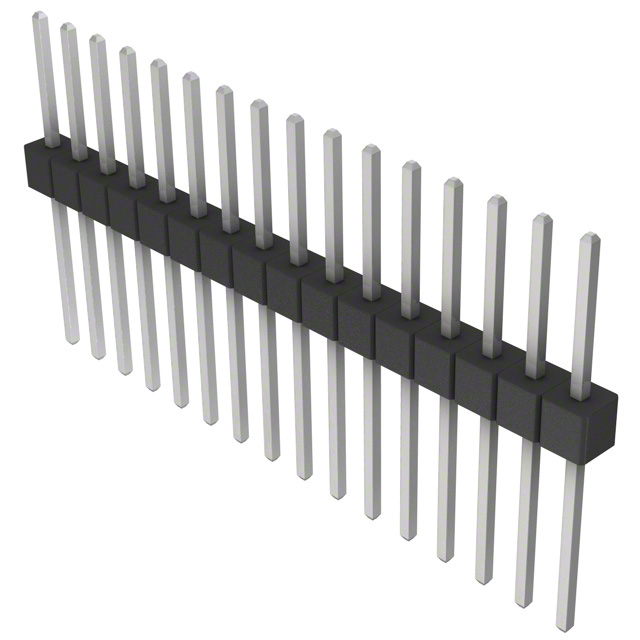

PEC16SFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

PEC16SFDN

Active

Sullins Connector Solutions

CONN HEADER VERT 16POS 2.54MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PEC16SFDN

Connector Type	Breakaway, Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Mating [x]	0.318 "
Contact Length - Mating [x]	8.08 mm
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Overall Contact Length	21.29 mm
Overall Contact Length	0.838 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PEC16 Series

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Type	Insulation Material	Material Flammability Rating	Mounting Type	Overall Contact Length	Overall Contact Length	Shrouding	Contact Shape	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Contact Length - Post	Contact Length - Post	Insulation Color	Insulation Height	Insulation Height	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Post	Connector Type	Fastening Type	Style	Termination	Number of Positions Loaded	Contact Material	Number of Positions	Contact Length - Post [x]	Contact Length - Post [x]	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]
Sullins Connector Solutions PEC16SAEN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.85 in	21.59 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm	13.21 mm	0.52 "	Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16
Sullins Connector Solutions PEC16SADN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.75 in	19.05 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16	10.67 mm	0.42 in
Sullins Connector Solutions PEC16SAGN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	1.05 in	26.67 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16	18.29 mm	0.72 "
Sullins Connector Solutions PEC16SFEN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.938 in	23.83 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm	13.21 mm	0.52 "	Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.318 "		Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16			8.08 mm
Sullins Connector Solutions PEC16SFDN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.838 in	21.29 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.318 "		Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16	10.67 mm	0.42 in	8.08 mm
Sullins Connector Solutions PEC16SBCN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole Right Angle			Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.14 in	3.56 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16	7.62 mm	0.3 "
Sullins Connector Solutions PEC16SABN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.56 in	14.22 mm	Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm	5.84 mm	0.23 in	Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16
Sullins Connector Solutions PEC16DADN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole	0.75 in	19.05 mm	Unshrouded	Square	2	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.1 in	2.54 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze		10.67 mm	0.42 in		2.54 mm	0.1 in
Sullins Connector Solutions PEC16SBDN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole Right Angle			Unshrouded	Square	1	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.14 in	3.56 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze	16	10.16 mm	0.4 in
Sullins Connector Solutions PEC16DBBN	2.54 µm	100 µin	Male Pin	Polybutylene Terephthalate (PBT)	UL94 V-0	Through Hole Right Angle			Unshrouded	Square	2	2.54 çm	100 çin	3 A	0.1 in	2.54 mm			Black	0.24 in	6.1 mm	125 °C	-65 ░C	0.23 in	5.84 mm	Tin	Breakaway Header	Push-Pull	Board to Board Cable	Solder	All	Phosphor Bronze		5.08 mm	0.2 in		2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.47
		10	$ 1.27
		100	$ 1.14
		500	$ 0.95
		1000	$ 0.81
		5000	$ 0.78

Description

General part information

PEC16 Series

Connector Header Through Hole 16 position 0.100" (2.54mm)
