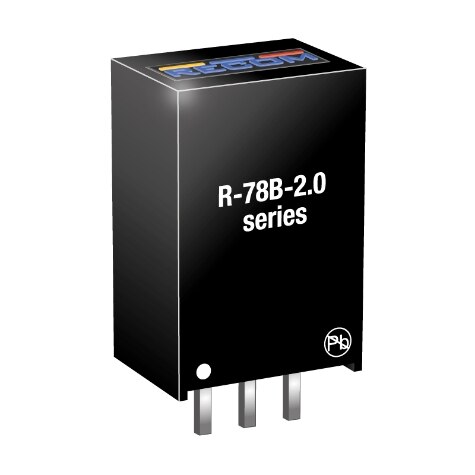

Specification	R-78B9.0-2.0

Applications	ITE (Commercial)
Current - Output (Max)	2 A
Efficiency	95 %
Features	SCP, OTP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature (Max)	70 °C
Operating Temperature (Min)	-40 °C
Package / Case	3-SIP Module
Size / Dimension Height	0.69 in
Size / Dimension Length	0.45 in
Size / Dimension Width	0.33 in
Type	Linear Regulator Replacement
Voltage - Input (Max)	32 V
Voltage - Input (Min)	11 V
Voltage - Output 1	9 V

R-78B Series

Part	Power (Watts)	Applications	Package / Case	Type	Voltage - Input (Min)	Efficiency	Features	Number of Outputs	Current - Output (Max)	Operating Temperature (Min)	Operating Temperature (Max)	Size / Dimension Height	Size / Dimension Length	Size / Dimension Width	Voltage - Input (Max)	Mounting Type	Voltage - Output 1
Recom Power R-78B6.5-1.5L	9.75 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	8 V	95 %	OTP SCP	1	1.5 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	18 V	Right Angle Through Hole	6.5 V
Recom Power R-78B9.0-1.0L	9 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	12 V	95 %	OTP SCP	1	1 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	32 V	Right Angle Through Hole	9 V
Recom Power R-78B1.8-1.0L	1.8 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	80 %	OTP SCP	1	1 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	26 V	Right Angle Through Hole	1.8 V
Recom Power R-78B6.5-1.0L	6.5 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	9 V	94 %	OTP SCP	1	1 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	32 V	Right Angle Through Hole	6.5 V
Recom Power R-78B3.3-1.0L	3 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	89 %	OTP SCP	1	1 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	32 V	Through Hole	3.3 V
Recom Power R-78B15-1.0L	15 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	20 V	97 %	OTP SCP	1	1 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	32 V	Right Angle Through Hole	15 V
Recom Power R-78B9.0-1.0	9 W	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	12 V	95 %	OTP SCP	1	1 A	-40 °C	85 °C	0.69 in	0.45 in	0.33 in	32 V	Through Hole	9 V
Recom Power R-78B1.8-1.0	2 w	ITE (Commercial) Medical	3-SIP Module	Linear Regulator Replacement	4.75 V	80 %	OTP SCP	1	1 A	-40 °C	85 °C	0.69 in	0.45 in	0.33 in	26 V	Through Hole	1.8 V
Recom Power R-78B3.3-1.5	4.95 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	4.75 V	91 %	OTP SCP	1	1.5 A	-40 °C	85 °C	0.69 in	0.45 in	0.33 in	18 V	Through Hole	3.3 V
Recom Power R-78B5.0-1.5L	7.5 W	ITE (Commercial)	3-SIP Module	Linear Regulator Replacement	6.5 V	94 %	OTP SCP	1	1.5 A	-40 °C	85 °C	0.33 in	0.69 in	0.45 in	18 V	Right Angle Through Hole	5 V
