140664
ActiveTE Connectivity AMP Connectors
TERMINAL RING TONGUE 14 18 TIN PL ROHS COMPLIANT: YES
140664
ActiveTE Connectivity AMP Connectors
TERMINAL RING TONGUE 14 18 TIN PL ROHS COMPLIANT: YES
Description
General part information
140664

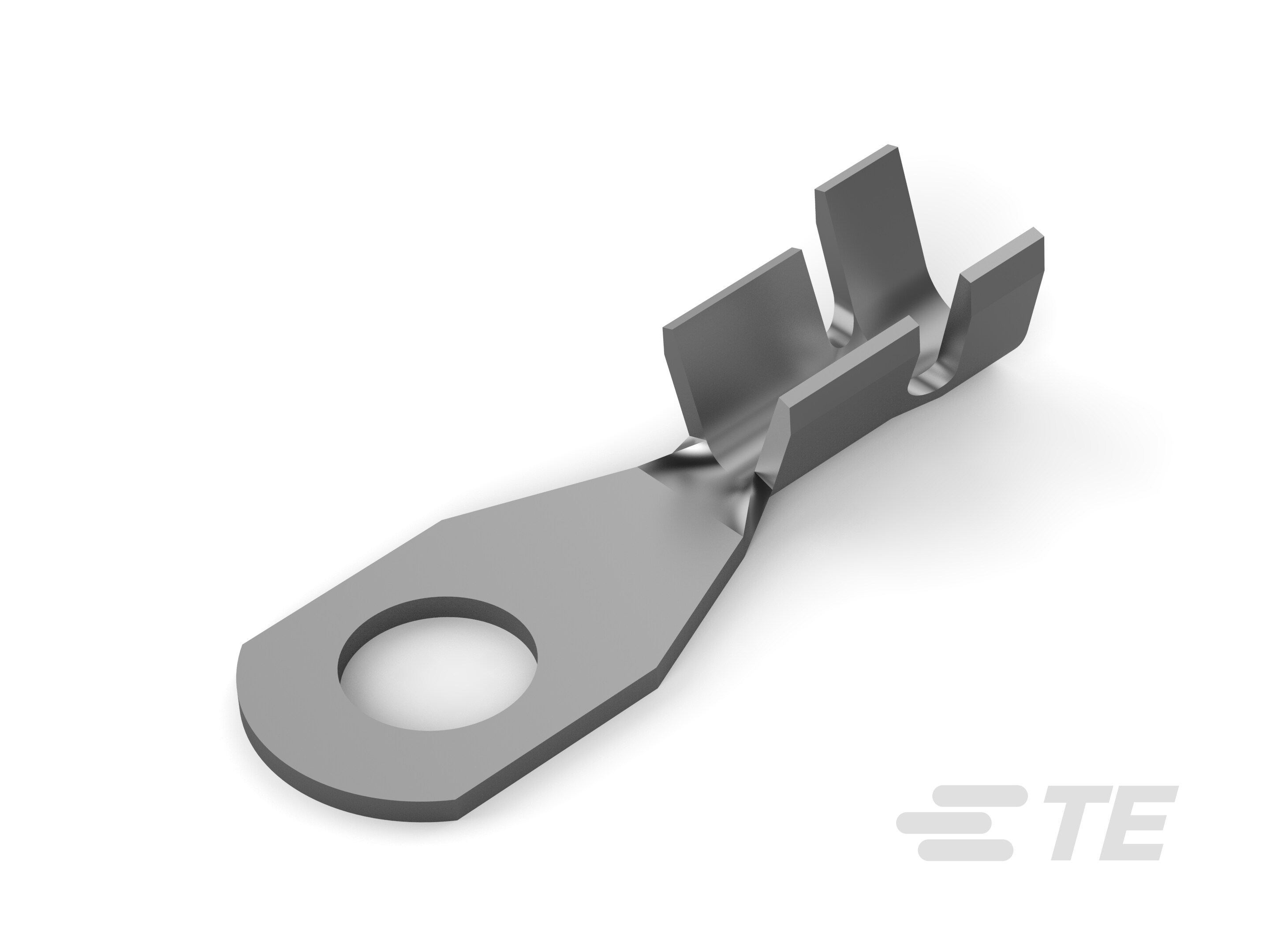

Closed Ring Tongue Terminal, 18 – 14 AWG, #8 / M4 Stud, 4.3 mm [.169 in] Stud Diameter, Open Barrel, Straight, Tin Plating, Uninsulated
Technical Specifications
Parameters and characteristics for this part
| Specification | 140664 |
|---|---|
| Contact Finish | Tin |
| Contact Material | Brass |
| Insulation | Non-Insulated |
| Mounting Type | Free Hanging (In-Line) |
| Terminal Type | Flat Sided |
| Termination | Crimp |
| Thickness | 0.024 in |
| Width - Outer Edges | 0.276 in |
| Wire Gauge (AWG) (Max) | 18 AWG |
| Wire Gauge (AWG) (Min) | 14 AWG |
