B82726S3223A340
ActiveEPCOS - TDK Electronics
CMC 1.7MH 25A 2LN TH
B82726S3223A340
ActiveEPCOS - TDK Electronics
CMC 1.7MH 25A 2LN TH
Description
General part information

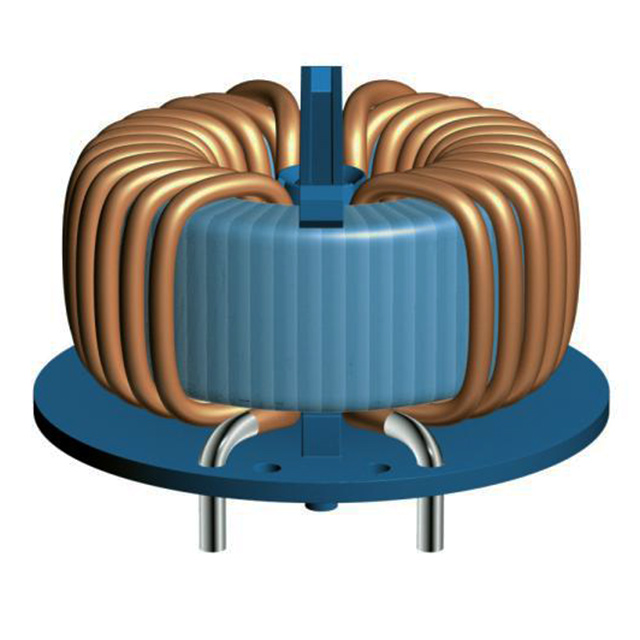

B82726S3223A340
1.7 mH @ 10 kHz 2 Line Common Mode Choke Through Hole 25A DCR 2.75mOhm (Typ)
Technical Specifications
Parameters and characteristics for this part
| Specification | B82726S3223A340 |
|---|---|
| Approval Agency | UR |
| Current Rating (Max) | 25 A |
| DC Resistance (DCR) (Max) | 2.75 mOhm |
| DC Resistance (DCR) (Typ) | 2.75 mOhm |
| Filter Type | Power Line |
| Height (Max) | 1.339 in |
| Inductance | 1.7 mH |
| Mounting Type | Through Hole |
| Number of Lines | 2 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 4 PC Pin, Horizontal |
| Package Leads | 4 Leads |
| Package Name | Horizontal |
| Size / Dimension Diameter | 2.165 in |
| Voltage Rating - AC | 300 V |
