3-2282279-2
ActiveTE Connectivity AMP Connectors
32POS MQS .63 HEADER 90DEG THR
3-2282279-2
ActiveTE Connectivity AMP Connectors
32POS MQS .63 HEADER 90DEG THR
Description
General part information
3-2282279-2

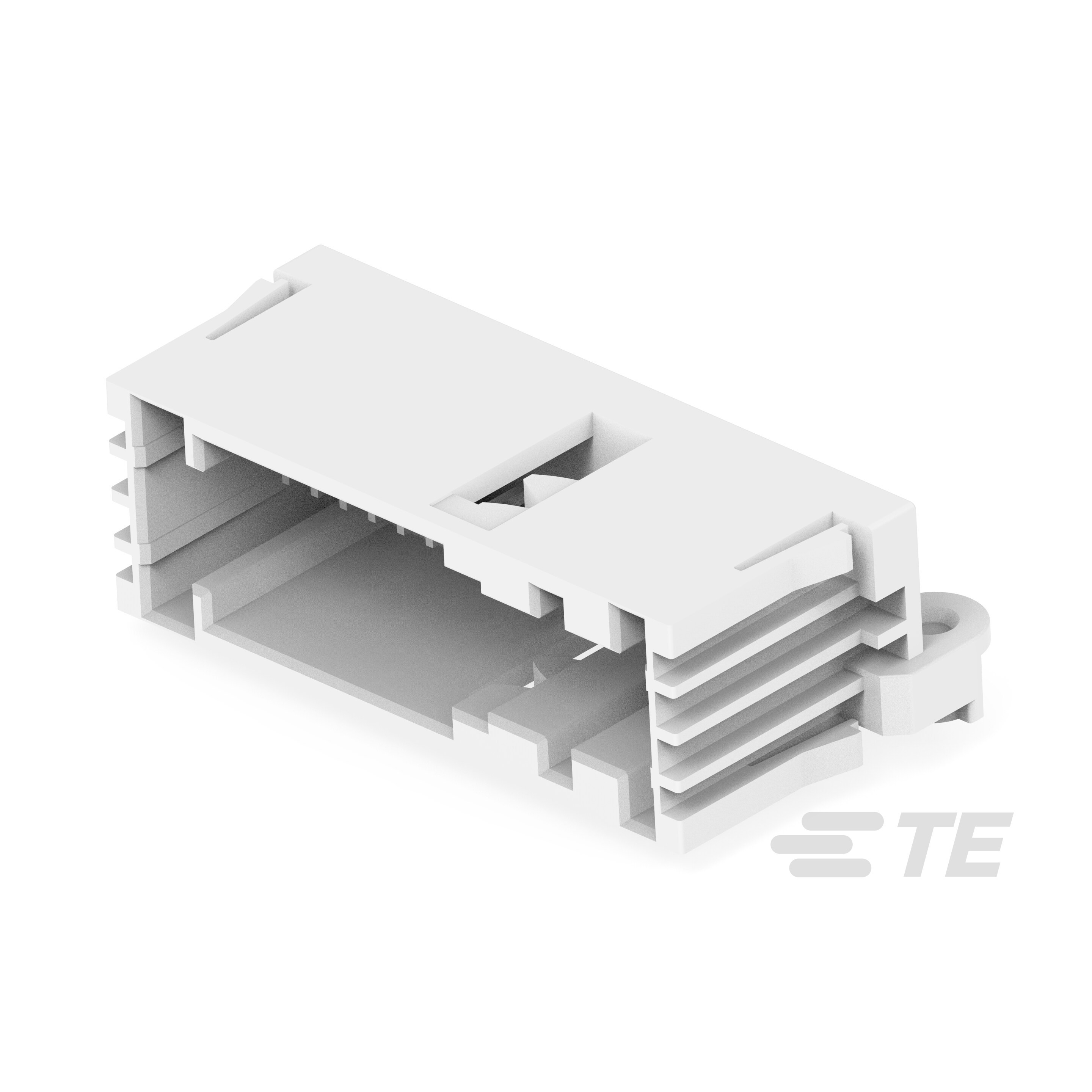

Horizontal, Wire-to-Board, 32 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, Natural, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 3-2282279-2 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.268 in |
| Contact Length - Post | 0.087 in |
| Contact Material | Copper Tin |
| Contact Shape | Square |
| Contact Type | Tab |
| Current Rating | 7.5 A |
| Fastening Type | Latch Holder |
| Features | Mounting Flange |
| Insulation Color | Natural |
| Insulation Height | 0.669 in |
| Insulation Material | Polyphthalamide (PPA), Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 32 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 120 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
