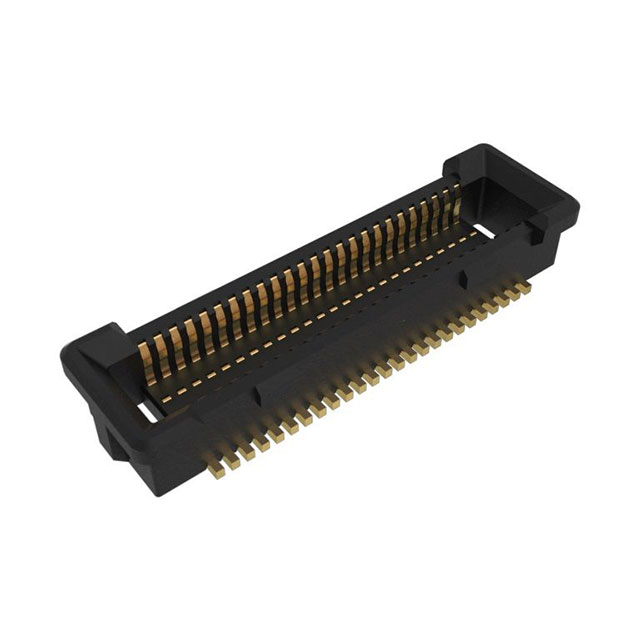

10156000-051100LF - 10156000-051100LF

10156000-051100LF

Active
Amphenol ICC (FCI)

BERGSTAK 0.50MM SELF-ALIGNMENT B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetbergstak 0 50mm selfalignment btb productpresentation Other Related Document
10156000-051100LF - 10156000-051100LF

10156000-051100LF

Active
Amphenol ICC (FCI)

BERGSTAK 0.50MM SELF-ALIGNMENT B

Deep-Dive with AI

DocumentsDatasheetbergstak 0 50mm selfalignment btb productpresentation Other Related Document

Technical Specifications

Parameters and characteristics for this part

Specification10156000-051100LF
Connector TypeReceptacle, Outer Shroud Contacts
Contact FinishGold
Height Above Board [z]0.104 in
Height Above Board [z]2.65 mm
Mated Stacking Heights3 mm
Mounting TypeSurface Mount
Number of Positions50
Number of Rows2
Pitch [x]0.5 mm
Pitch [x]0.02 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 2.30
10$ 1.75
25$ 1.58
50$ 1.46
100$ 1.35
250$ 1.22
500$ 1.14
Digi-Reel® 1$ 2.30
10$ 1.75
25$ 1.58
50$ 1.46
100$ 1.35
250$ 1.22
500$ 1.14
Tape & Reel (TR) 1500$ 1.02
3000$ 0.95
4500$ 0.91
7500$ 0.87
10500$ 0.86

Description

General part information

10156000 Series

50 Position Connector Receptacle, Outer Shroud Contacts Surface Mount Gold
