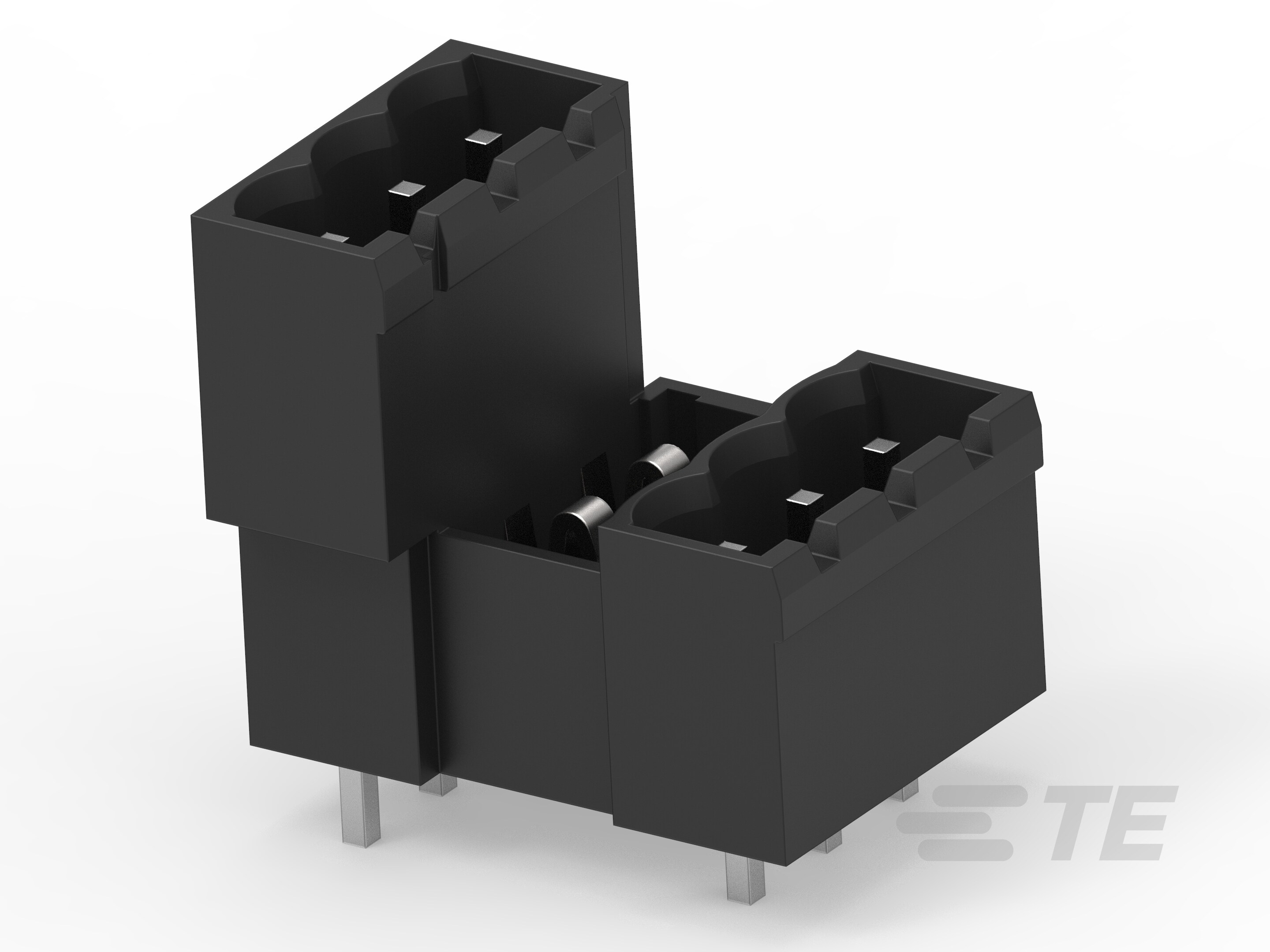

Specification	1776164-3

Color	Black
Contact Mating Finish	Tin
Current - UL	12 A
Features	Interlocking (Side)
Header Orientation	Vertical
Mounting Type	Through Hole
Number of Levels	2
Number of Positions	6
Operating Temperature (Max)	110 °C
Operating Temperature (Min)	-40 °C
Pitch	0.197 in
Positions Per Level	3
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - UL	300 V
