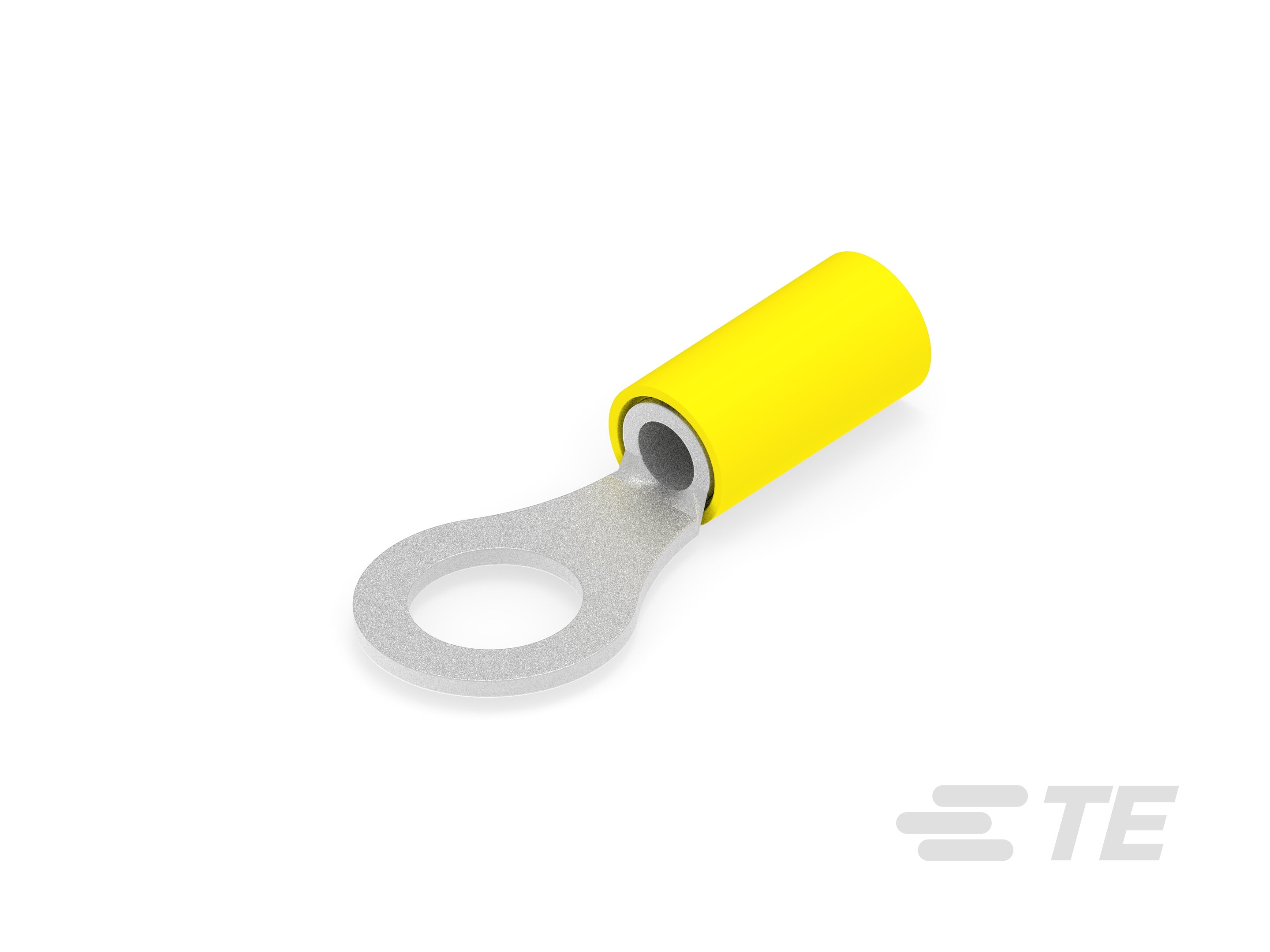

TERMINAL,PIDG R 12-10 5/16-35111

35111

Active
TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG #5/16

Find alt
TERMINAL,PIDG R 12-10 5/16-35111

35111

Active
TE Connectivity AMP Connectors

CONN RING CIRC 10-12AWG #5/16

Find alt

Description

General part information

35111

Closed Ring Tongue Terminal, 12 – 10 AWG, 5/16 / M8 Stud, 8.33 mm [.328 in] Stud Diameter, Closed Barrel, Straight, Tin Plating, PIDG

Technical Specifications

Parameters and characteristics for this part

Specification35111
ColorYellow
Contact FinishTin
Contact MaterialCopper
FeaturesSerrated Termination
InsulationInsulated
Length - Overall1.322 in
Mounting TypeFree Hanging (In-Line)
Stud/Tab Size0.3125 in
Stud/Tab Size16 Stud, 5 Stud
Stud/Tab Size (Type)Stud
Terminal TypeCircular
TerminationCrimp
Thickness0.04 in
Width - Outer Edges0.531 in
Wire Gauge (AWG) (Max)12 AWG
Wire Gauge (AWG) (Min)10 AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part
