1412015
ActivePhoenix Contact
CONN MALE INSERT 12POS SOLDER
1412015
ActivePhoenix Contact
CONN MALE INSERT 12POS SOLDER
Description
General part information
1412015

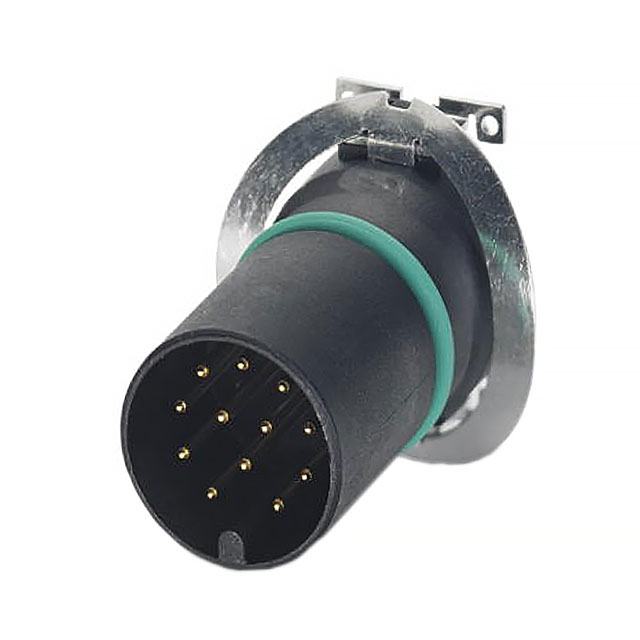

12 Position Circular Connector Insert, Male Pins Solder
Technical Specifications
Parameters and characteristics for this part
| Specification | 1412015 |
|---|---|
| Connector Type | Insert, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Current Rating | 1.5 A |
| Features | Requires Shell, Board Guide, Insert Only |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PA, Nylon, Polyamide |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 12 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | A |
| Shell Size - Insert | M12-12 |
| Shielding | Shielded |
| Termination | Solder |
| Voltage Rating | 30 V |
