PDU3EVNR6H50
ActiveEaton Tripp Lite

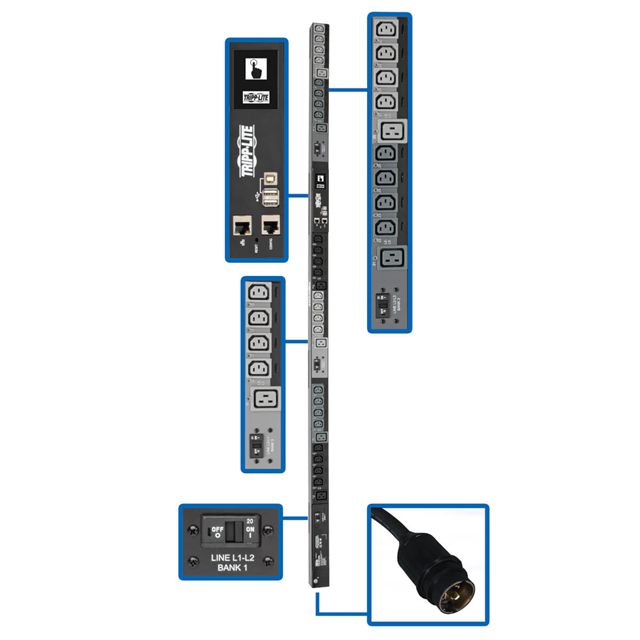

14.5KW 3-PHASE MONITORED PER-OUT
PDU3EVNR6H50
ActiveEaton Tripp Lite
14.5KW 3-PHASE MONITORED PER-OUT
Description
General part information
PDU3EVNR6H50
14.5KW 3-PHASE MONITORED PER-OUT
Technical Specifications
Parameters and characteristics for this part
| Specification | PDU3EVNR6H50 |
|---|---|
| AC Outlets (Count) | 30 count |
| Approval Agency | UL, CSA, NOM |
| Connector - AC Input | CS8365C |
| Connector - AC Output | C19, IEC 320-C13 |
| Connector - AC Output Quantity (C19) | 6 pcs |
| Connector - AC Output Quantity (IEC 320-C13) | 24 pcs |
| Cord Length | 6 ft |
| Current - Max | 35 A |
| Features | Load Meter, Programmable Alerts, Ethernet Control and Monitor Interface |
| Housing Material | Metal |
| Media Lines Protected | RJ45, RS-232 |
| Mounting Type | Rack, Vertical |
| Overload Protection | Circuit Breaker(s) |
| Region Utilized | North America |
| Type | Surge Protector, PDU |
| Voltage - Input (Maximum) | 240 V |
| Voltage - Input (Minimum) | 200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
