T4151320008-003
ActiveTE Connectivity AMP Connectors
SENSOR CABLE, M12 RECEPTACLE, FREE END, 8 POSITIONS, 1.5 M, 4.9 FT, T415 SERIES
T4151320008-003
ActiveTE Connectivity AMP Connectors
SENSOR CABLE, M12 RECEPTACLE, FREE END, 8 POSITIONS, 1.5 M, 4.9 FT, T415 SERIES
Description
General part information
T4151320008-003

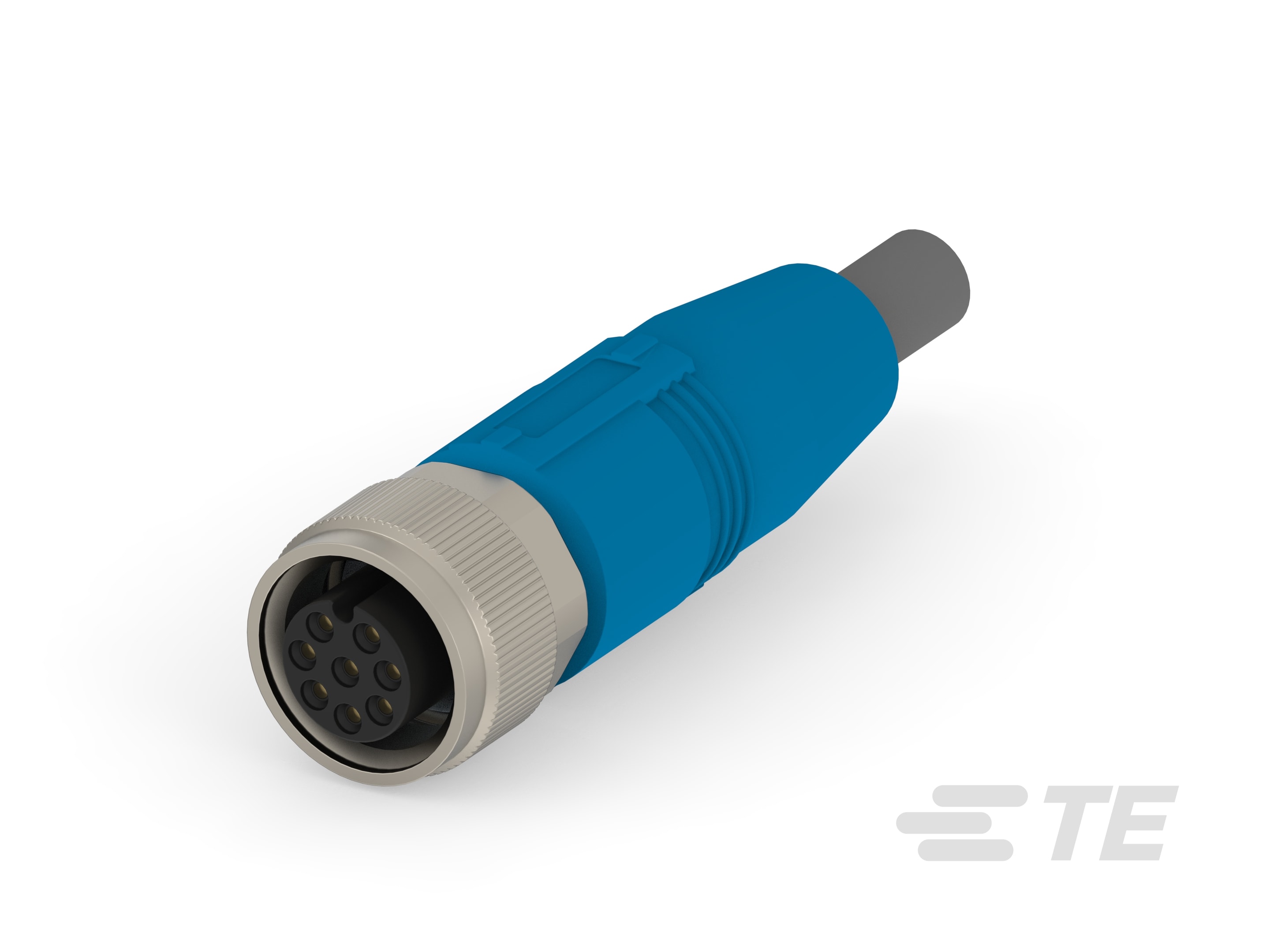

M12 Pigtail Cable Assembly, 8 Position, Cable Assembly Length 1.5 m [4.9 ft], Sensor/Actuator, A Code, M12 Socket End A, Single Ended, Nylon GF
Technical Specifications
Parameters and characteristics for this part
| Specification | T4151320008-003 |
|---|---|
| 1st Connector Gender | Female Sockets |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Connector Number of Positions | 8 positions |
| 1st Connector Number of Positions Loaded | All |
| 1st Connector Orientation | A |
| 1st Connector Shell Size - Insert | M12 |
| 1st Connector Type | Plug |
| 2nd Connector Type | Wire Leads |
| Assembly Configuration | Standard |
| Cable Material | Polyurethane (PUR) |
| Cable Type | Round |
| Color | Gray |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Length | 4.92 ft |
| Shielding | Unshielded |
| Usage | Industrial Environments |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
