MF0207FRE52-1R58

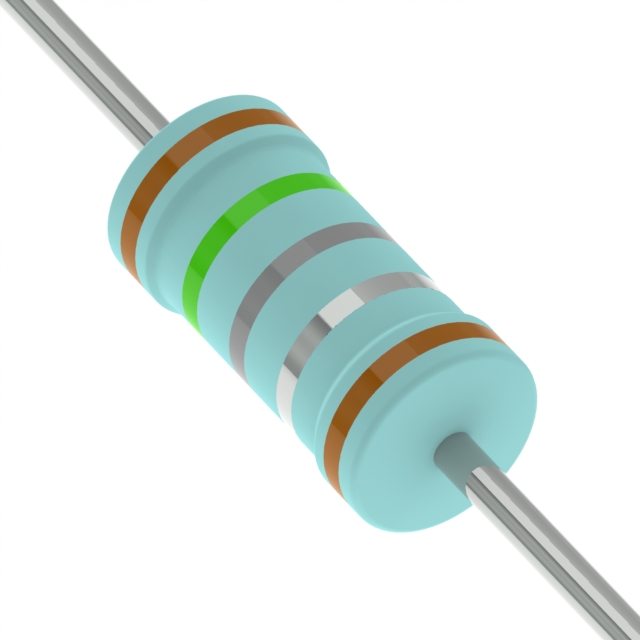

1.58 Ohms ±1% 0.6W Through Hole Resistor Axial Metal Film
Technical Specifications
Parameters and characteristics for this part
| Specification | MF0207FRE52-1R58 |
|---|---|
| Composition | Metal Film |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 155 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Package Name | Axial |
| Power (Watts) | 600 mW |
| Resistance | 1.58 Ohms |
| Size / Dimension Diameter | 0.094 in |
| Size / Dimension Length | 0.248 in |
| Temperature Coefficient | 50 ppm/°C |
| Tolerance | 1 % |
