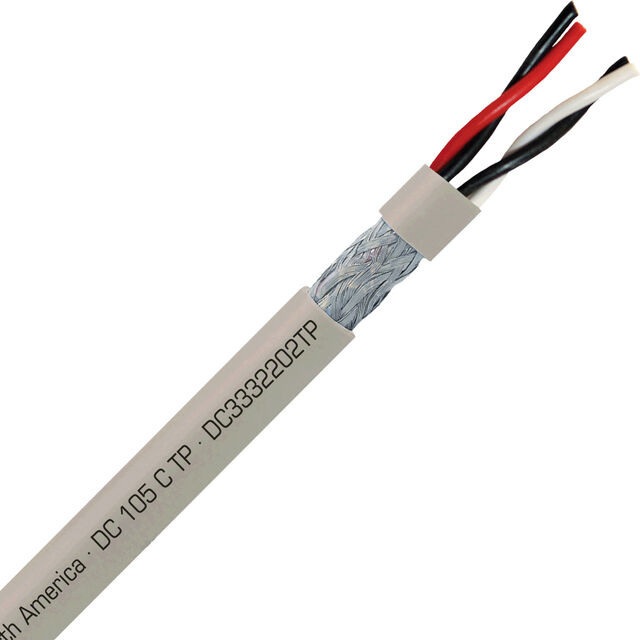

DC3332202TP

Active

SAB North America

MULTI-PAIR 4COND 22AWG GRY 1=1FT

Search across all available documentation for this part.

Active

SAB North America

MULTI-PAIR 4COND 22AWG GRY 1=1FT

Technical Specifications

Parameters and characteristics for this part

Specification	DC3332202TP

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	7
Conductor Strand [custom]	30 AWG
Features	Oil Resistant
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Gray
Length	Enter Number of Feet in Order Quantity
Number of Conductors	4
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-25 °C
Shield Material	Copper, Tinned
Shield Type	Foil, Braid
Voltage	300 V
Wire Gauge	22 AWG

MULTI-PAIR 4COND 22AWG GRY 1=1FT

Part	Shield Material	Number of Conductors	Conductor Insulation	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Voltage	Jacket Color	Features	Operating Temperature [Min]	Operating Temperature [Max]	Shield Type	Wire Gauge	Length	Cable Type	Conductor Material
SAB North America DC3332202TP	Copper, Tinned	4	Poly-Vinyl Chloride (PVC)	7	30 AWG	Poly-Vinyl Chloride (PVC)	300 V	Gray	Oil Resistant	-25 °C	105 ░C	Braid, Foil	22 AWG	Enter Number of Feet in Order Quantity	Multi-Pair	Copper, Tinned

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (2 Pair Twisted) Conductor Multi-Pair Cable Gray 22 AWG Foil, Braid Enter Number of Feet in Order Quantity
