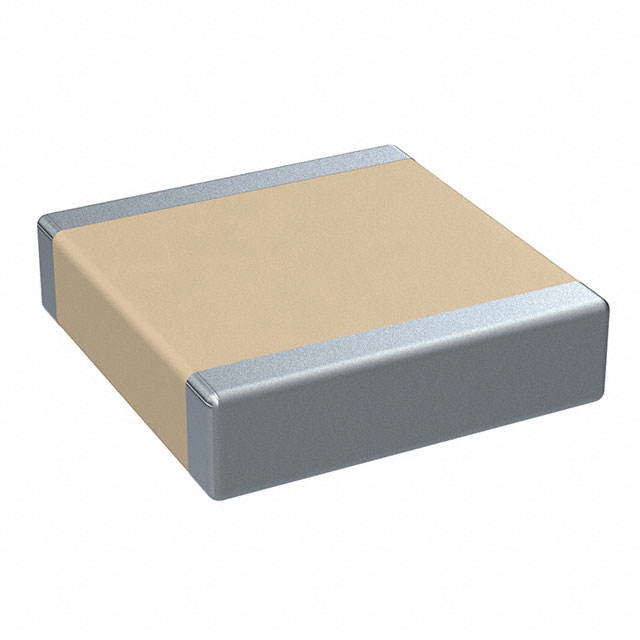

Specification	CKC33C563JDGACAUTO

Applications	Automotive
Capacitance	56 nF
Features	Low ESL, High Voltage, High Temperature
Mounting Type	Surface Mount, MLCC
Operating Temperature (Max)	150 °C
Operating Temperature (Min)	-55 °C
Package / Case	3640 (9110 Metric)
Ratings	AEC-Q200
Size / Dimension Length	0.366 in
Size / Dimension Width	0.402 in
Temperature Coefficient	NP0, C0G
Thickness (Max)	0.106 in
Tolerance	5 %
Voltage - Rated	1000 V

CKC33C Series

...

Part	Package / Case	Features	Size / Dimension Width	Size / Dimension Length	Applications	Thickness (Max)	Mounting Type	Capacitance	Operating Temperature (Max)	Operating Temperature (Min)	Voltage - Rated	Temperature Coefficient	Tolerance	Ratings
KEMET CKC33C183MDGAC7800	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	0.018 µF	150 °C	-55 °C	1000 V	C0G NP0	20 %
KEMET CKC33C273MDGAC7210	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.087 in	MLCC Surface Mount	0.027 µF	150 °C	-55 °C	1000 V	C0G NP0	20 %
KEMET CKC33C103KJGACAUTO	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	Automotive	0.106 in	MLCC Surface Mount	10000 pF	150 °C	-55 °C	1700 V	C0G NP0	10 %	AEC-Q200
KEMET CKC33C622JDGACAUTO	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	Automotive	0.106 in	MLCC Surface Mount	6200 pF	150 °C	-55 °C	1000 V	C0G NP0	5 %	AEC-Q200
KEMET CKC33C183GEGAC7210	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	0.018 µF	150 °C	-55 °C	1200 V	C0G NP0	2 %
KEMET CKC33C103KWGAC7210	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	10000 pF	150 °C	-55 °C	650 V	C0G NP0	10 %
KEMET CKC33C912MDGAC7800	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	9100 pF	150 °C	-55 °C	1000 V	C0G NP0	20 %
KEMET CKC33C393FDGAC7800	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	0.039 µF	150 °C	-55 °C	1000 V	C0G NP0	1 %
KEMET CKC33C273GWGAC7210	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	General Purpose	0.106 in	MLCC Surface Mount	0.027 µF	150 °C	-55 °C	650 V	C0G NP0	2 %
KEMET CKC33C622MWGACAUTO	3640 (9110 Metric)	High Temperature High Voltage Low ESL	0.402 in	0.366 in	Automotive	0.106 in	MLCC Surface Mount	6200 pF	150 °C	-55 °C	650 V	C0G NP0	20 %	AEC-Q200
