1002-021-01000
ActiveCnC Tech, LLC

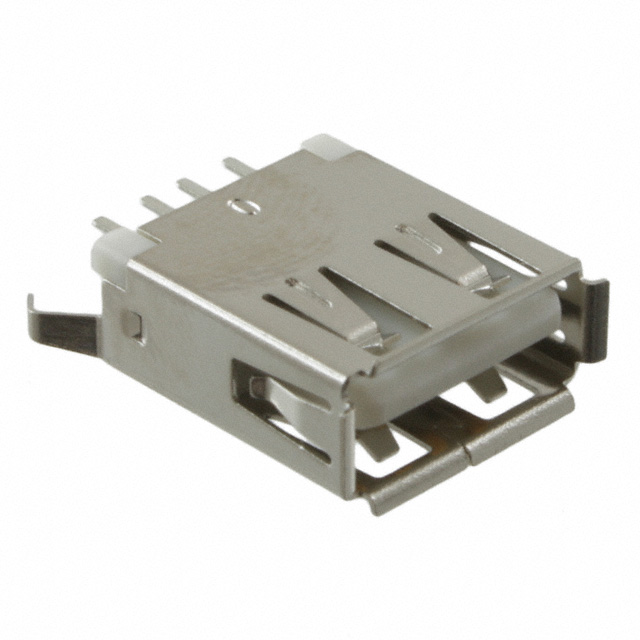

CONN RCPT USB2.0 TYPEA 4POS VERT
Deep-Dive with AI
Search across all available documentation for this part.
1002-021-01000
ActiveCnC Tech, LLC
CONN RCPT USB2.0 TYPEA 4POS VERT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1002-021-01000 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Feature | Vertical |
| Mounting Type | Through Hole |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Brass |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.17 | |
| 10 | $ 0.99 | |||
| 25 | $ 0.95 | |||
| 40 | $ 0.93 | |||
| 80 | $ 0.89 | |||
| 230 | $ 0.81 | |||
| 440 | $ 0.73 | |||
| 945 | $ 0.65 | |||
| 2400 | $ 0.59 | |||
Description
General part information
1002-021-01000
USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Through Hole
