Description

General part information

HFB143064-300

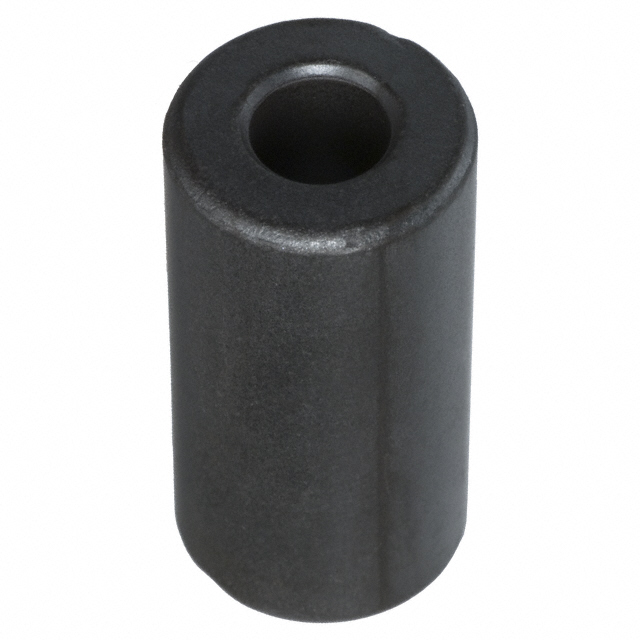

Solid Free Hanging Ferrite Core 270Ohm @ 300MHz ID 0.250" Dia (6.35mm) OD 0.562" Dia (14.27mm) Length 1.125" (28.58mm)

Technical Specifications

Parameters and characteristics for this part

SpecificationHFB143064-300
DesignSolid
Impedance270 Ohm
Inner Dimension (Diameter)0.25 in
Length1.125 in
MaterialHF
Mounting TypeFree Hanging
Outer Dimension (Diameter)0.562 in
TypeRound

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Sign in to see pricing

Create a free account to access distributor pricing data.

Sign up — freeLog in

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

No documents available
