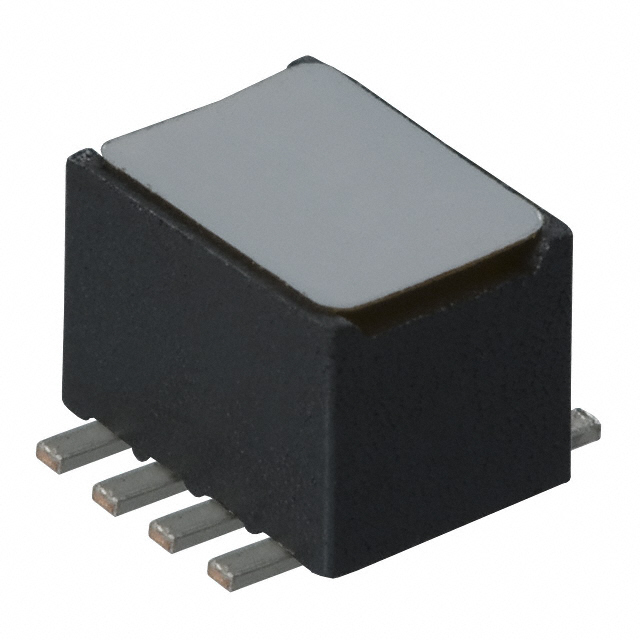

29F0418-1SR
ObsoleteLaird Technologies EMI
FERRITE BEAD 119 OHM 8SMD 4LN
29F0418-1SR
ObsoleteLaird Technologies EMI
FERRITE BEAD 119 OHM 8SMD 4LN
Description
General part information
29F0418-1SR
119 Ohms @ 100 MHz 4 Power Line Ferrite Bead 8-SMD, Flat Lead 6A 10mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | 29F0418-1SR |
|---|---|
| Current Rating (Max) | 6 A |
| DC Resistance (DCR) (Max) | 10 mOhm |
| Filter Type | Power Line |
| Height (Max) | 0.19 " |
| Impedance | 119 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 4 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Flat Leads, 8-SMD, Flat Lead |
| Size / Dimension Length | 0.24 in |
| Size / Dimension Width | 0.177 in |
