2180488-4
ActiveTE Connectivity AMP Connectors

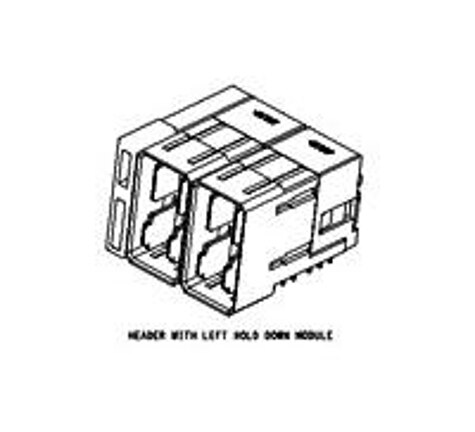

HIGH SPEED / MODULAR CONNECTORS IMP,POWER,4PR,R/AH, L-HLD DWN,5.7,6.9TIN
2180488-4
ActiveTE Connectivity AMP Connectors
HIGH SPEED / MODULAR CONNECTORS IMP,POWER,4PR,R/AH, L-HLD DWN,5.7,6.9TIN
Description
General part information
2180488-4
HIGH SPEED / MODULAR CONNECTORS IMP,POWER,4PR,R/AH, L-HLD DWN,5.7,6.9TIN
Technical Specifications
Parameters and characteristics for this part
| Specification | 2180488-4 |
|---|---|
| Connector Style | Blade Power |
| Connector Type | Male Blades, Header |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Features | Board Guide |
| Mounting Type | Right Angle, Through Hole, Board Edge |
| Number of Columns | 2 |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Power Contacts (Typical) | 4 |
| Termination | Press-Fit |
