FMANOM1059
ActiveFairview Microwave
ANTENNA SMA PLUG 2.4 MHZ-7.125 G
FMANOM1059
ActiveFairview Microwave
ANTENNA SMA PLUG 2.4 MHZ-7.125 G
Description
General part information

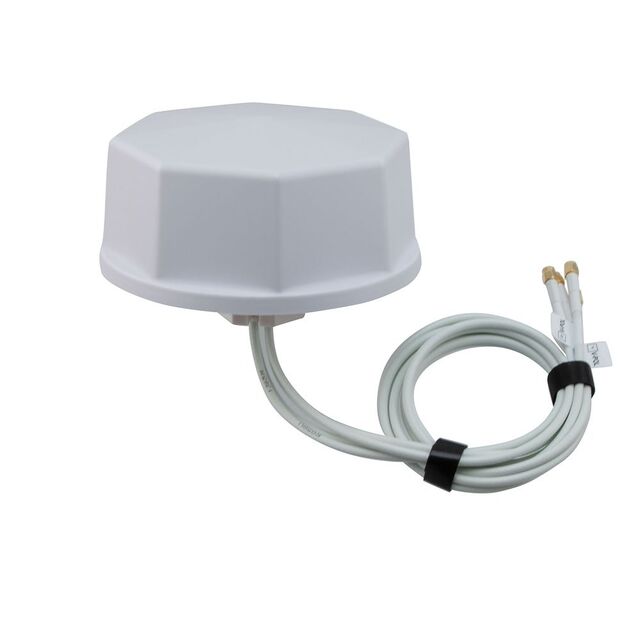

FMANOM1059
RF ANTENNA 802.11ax, Bluetooth, Wi-Fi, Zigbee™ Dome RP-SMA Male Pole Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | FMANOM1059 |
|---|---|
| Antenna Type | Dome |
| Applications | Wi-Fi, 802.11ax, Bluetooth, Zigbee™ |
| Features | 914.4mm, Cable |
| Frequency (Center/Band) | 4.762 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Max) | 7.125 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 6 dBi |
| Height (Max) | 3.15 in |
| Mounting Type | Pole Mount |
| Number of Bands | 1 |
| Power - Max | 50 VA |
| RF Family/Standard | 802.15.4, Bluetooth, WiFi |
| Termination Type | RP-SMA Male |
| VSWR | 2 |
