1131C SL005
ActiveALPHA WIRE

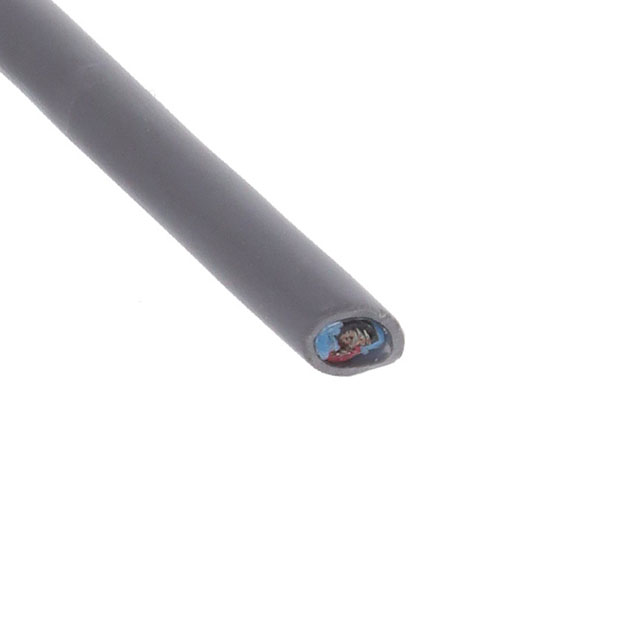

TWISTED PAIR CABLE POLYVINYL CHLORIDE 2CONDUCTORS 18AWG 5.96MM 300VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL
Deep-Dive with AI
Search across all available documentation for this part.
1131C SL005
ActiveALPHA WIRE
TWISTED PAIR CABLE POLYVINYL CHLORIDE 2CONDUCTORS 18AWG 5.96MM 300VAC SLATE POLYVINYL CHLORIDE 30.48M SPOOL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1131C SL005 | 1131C Series |
|---|---|---|
| Cable Type | Multi-Conductor | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Tinned | Copper, Tinned |
| Conductor Strand [custom] | 16 | 16 |
| Conductor Strand [custom] | 30 AWG | 30 AWG |
| Jacket (Insulation) Diameter [diameter] | 0.225 " | 0.225 " |
| Jacket (Insulation) Diameter [diameter] | 5.72 mm | 5.72 mm |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Slate | Slate |
| Length | - | 1000 ft |
| Length | - | 304.8 m |
| Length [x] | 30.5 m | 30.5 - 152.4 m |
| Length [x] | 100 ft | 100 - 500 ' |
| Number of Conductors | 2 | 2 |
| Operating Temperature [Max] | 80 C | 80 C |
| Operating Temperature [Min] | -20 C | -20 C |
| Usage | Control, Communication | Control, Communication |
| Voltage | 300 V | 300 V |
| Wire Gauge | 18 AWG | 18 AWG |
1131C Series
CABLE 2COND 18AWG SLATE
| Part | Wire Gauge | Length | Length | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Cable Type | Usage | Number of Conductors | Voltage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Operating Temperature [Min] | Operating Temperature [Max] | Conductor Material | Jacket (Insulation) Material | Jacket Color | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
ALPHA WIRE 1131C SL001 | 18 AWG | 1000 ft | 304.8 m | 0.225 " | 5.72 mm | Multi-Conductor | Communication, Control | 2 | 300 V | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | -20 C | 80 C | Copper, Tinned | Poly-Vinyl Chloride (PVC) | Slate | ||
ALPHA WIRE 1131C SL002 | 18 AWG | 0.225 " | 5.72 mm | Multi-Conductor | Communication, Control | 2 | 300 V | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | -20 C | 80 C | Copper, Tinned | Poly-Vinyl Chloride (PVC) | Slate | 500 ' | 152.4 m | ||
ALPHA WIRE 1131C SL005 | 18 AWG | 0.225 " | 5.72 mm | Multi-Conductor | Communication, Control | 2 | 300 V | Poly-Vinyl Chloride (PVC) | 16 | 30 AWG | -20 C | 80 C | Copper, Tinned | Poly-Vinyl Chloride (PVC) | Slate | 100 ft | 30.5 m |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 205.77 | |
Description
General part information
1131C Series
2 (1 Pair Twisted) Conductor Multi-Conductor Cable Slate 18 AWG 100.0' (30.5m)
