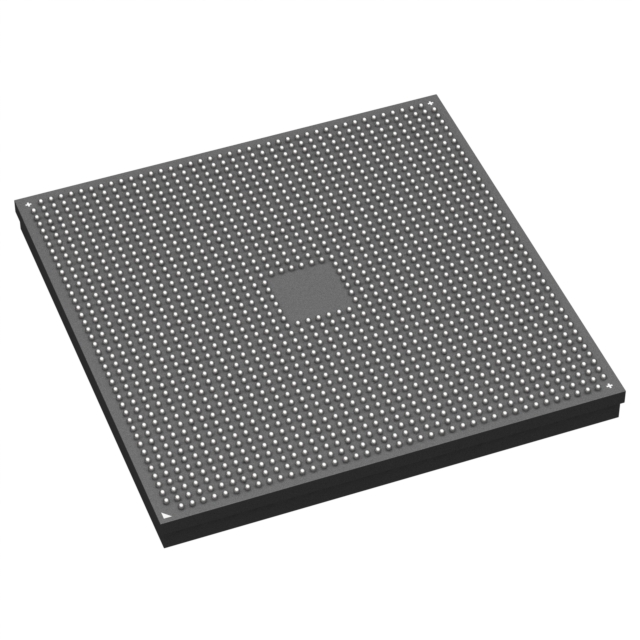

XCVC1802-1MLIVSVD1760
ActiveAMD / Xilinx
IC VERSAL AICORE FPGA 1760BGA
XCVC1802-1MLIVSVD1760
ActiveAMD / Xilinx
IC VERSAL AICORE FPGA 1760BGA
Description
General part information
XCVC1802-1MLIVSVD1760
Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ System On Chip (SOC) IC Versal™ AI Core Versal™ AI Core FPGA, 1.5M Logic Cells 600MHz, 1.3GHz 1760-FCBGA (40x40)
Technical Specifications
Parameters and characteristics for this part
| Specification | XCVC1802-1MLIVSVD1760 |
|---|---|
| Architecture | MPU, FPGA |
| Connectivity | USART, SD, USB OTG, CANbus, MMC, EBI, UART, Ethernet, SPI, I2C, SDIO, EMI |
| Core Processor | Dual ARM® Cortex®-A72 MPCore™ with CoreSight™, Dual ARM®Cortex™-R5F with CoreSight™ |
| Logic Elements | 1.5 M Logic Cells |
| Number of I/O | 692 |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 1760-BFBGA, FCBGA |
| Package Length | 40 mm |
| Package Name | 1760-FCBGA |
| Package Width | 40 mm |
| Peripherals | DDR, DMA, PCIe |
| Primary Attributes | Versal™ AI Core FPGA, 1.5M Logic Cells, 1.5M Logic Cells, Versal™ AI Core FPGA |
| RAM Size | 256 KB |
| Speed | 1.3 GHz, 600 MHz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
