Description
General part information

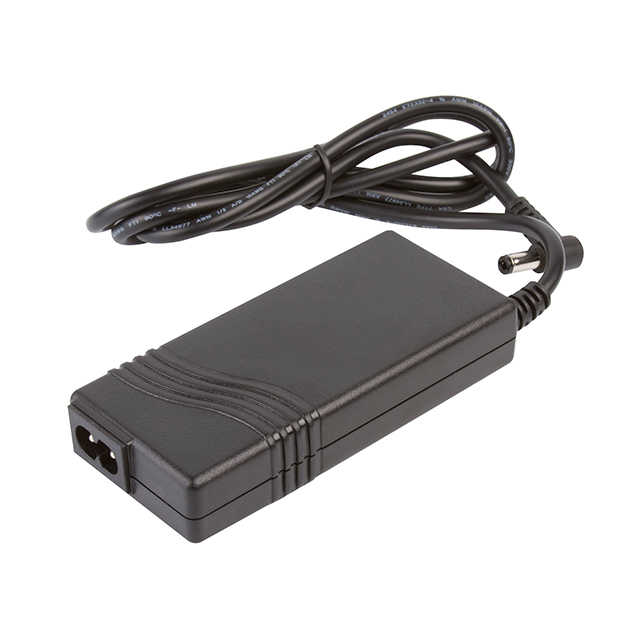

AED36US09
9V 27 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AED36US09 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 48 in |
| Current - Output (Max) | 3 A |
| Efficiency | 85 % |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord (Sold Separately) |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector I.D. | 2.5 mm |
| Output Connector Length | 12 mm |
| Output Connector O.D. | 5.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 27 W |
| Region Utilized | International |
| Size / Dimension Height | 0.79 in |
| Size / Dimension Length | 4.33 in |
| Size / Dimension Width | 1.97 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 9 V |
