1896C SL002

Active

ALPHA WIRE

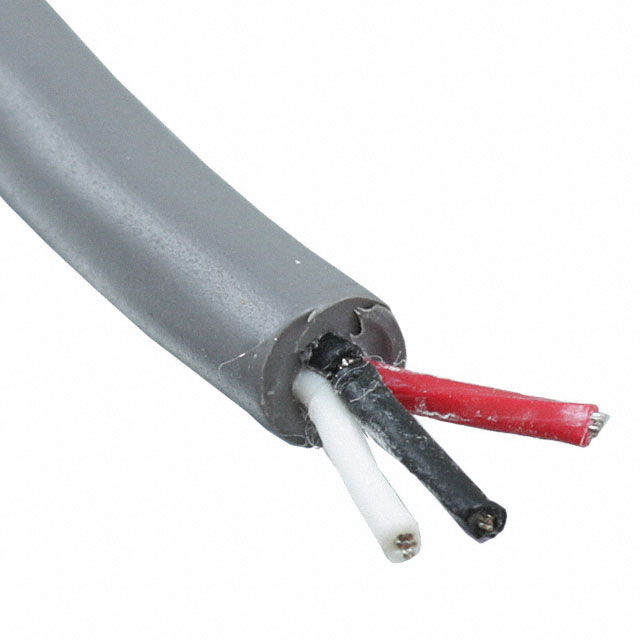

CABLE 3COND 20AWG SLATE 500'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 3COND 20AWG SLATE 500'

Technical Specifications

Parameters and characteristics for this part

Specification	1896C SL002

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	4.85 mm
Jacket (Insulation) Diameter [diameter]	0.191 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.02 in
Jacket (Insulation) Thickness	0.508 mm
Jacket Color	Slate
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	3
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Control, Communication
Voltage	300 V
Wire Gauge	20 AWG

CABLE 3COND 20AWG SLATE 500'

Part	Number of Conductors	Usage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Length [x]	Length [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Wire Gauge	Jacket (Insulation) Material	Jacket Color	Conductor Insulation
ALPHA WIRE 1896C SL002	3	Communication, Control	4.85 mm	0.191 in	Copper, Tinned	500 '	152.4 m	-20 C	80 C	Multi-Conductor	300 V	0.02 in	0.508 mm	28	7	20 AWG	Poly-Vinyl Chloride (PVC)	Slate	Poly-Vinyl Chloride (PVC)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

3 Conductor Multi-Conductor Cable Slate 20 AWG 500.0' (152.4m)
