7-2371900-4
ActiveTE Connectivity AMP Connectors

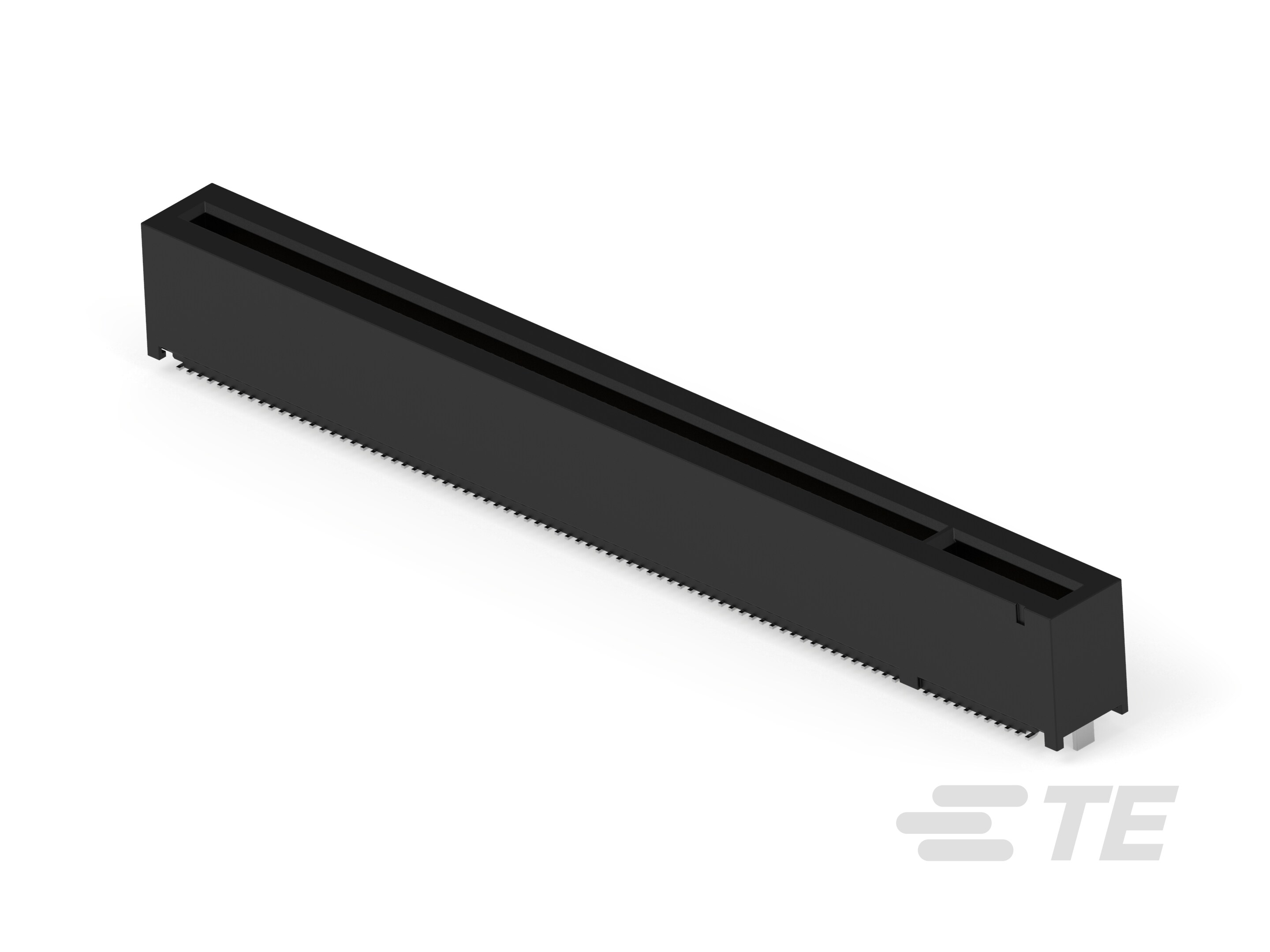

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 164 CONTACTS, SURFACE MOUNT, STRAIGHT
7-2371900-4
ActiveTE Connectivity AMP Connectors
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 164 CONTACTS, SURFACE MOUNT, STRAIGHT
Description
General part information
7-2371900-4
Board-to-Board, 164 Position, 1 mm [.04 in] Centerline, Vertical, Black, 11.25 mm [.44 in] Height, 7.4 mm [.29 in] Width, PCI & PCI Express Connectors
Technical Specifications
Parameters and characteristics for this part
| Specification | 7-2371900-4 |
|---|---|
| Card Thickness | 0.062 in |
| Card Type | PCI Express™ |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | GEN5, Board Guide, Solder Retention, Pick and Place Cap |
| Gender | Female |
| Mounting Type | Surface Mount |
| Number of Bay | 71 |
| Number of Positions | 11, 164 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch | 0.039 in |
| Read Out | Dual |
| Termination | Solder |
