Description

General part information

440055-2

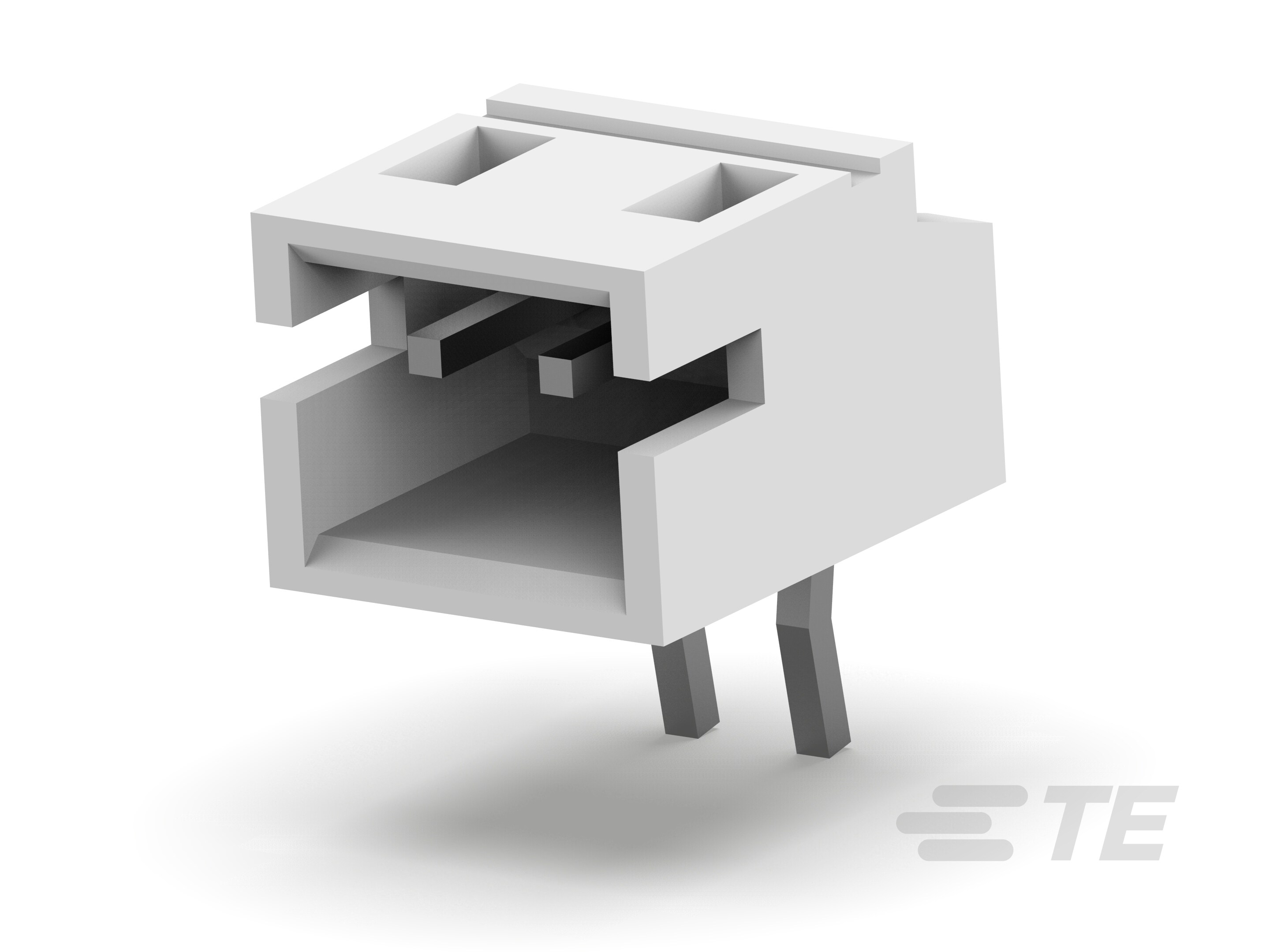

PCB Mount Header, Right Angle, Wire-to-Board, 2 Position, 2 mm [.079 in] Centerline, Fully Shrouded, Tin (Sn), Through Hole - Solder, Signal, Natural

Technical Specifications

Parameters and characteristics for this part

Specification440055-2
Connector TypeHeader
Contact Finish - MatingTin
Contact Finish - PostTin
Contact Finish Thickness - Mating80 µin
Contact Length - Mating0.138 in
Contact Length - Post0.134 in
Contact MaterialBrass
Contact ShapeSquare
Contact TypeMale Pin
Current Rating3 A
Insulation ColorNatural
Insulation Height0.195 in
Insulation MaterialThermoplastic
Material Flammability RatingUL94 V-0
Mounting TypeThrough Hole, Right Angle
Number of Positions2
Number of Positions LoadedAll
Number of Rows1
Operating Temperature (Max)85 °C
Operating Temperature (Min)-25 °C
Pitch - Mating0.079 in
ShroudingShrouded - 3 Wall
StyleCable/Wire, Board
TerminationPress-Fit, Solder
Voltage Rating250 V
