180441-2

Active

TE Connectivity AMP Connectors

FASTON REC. .110 ROHS COMPLIANT: YES

Find alt

Alpha

180441-2

Active

TE Connectivity AMP Connectors

FASTON REC. .110 ROHS COMPLIANT: YES

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

FASTON 110 Series

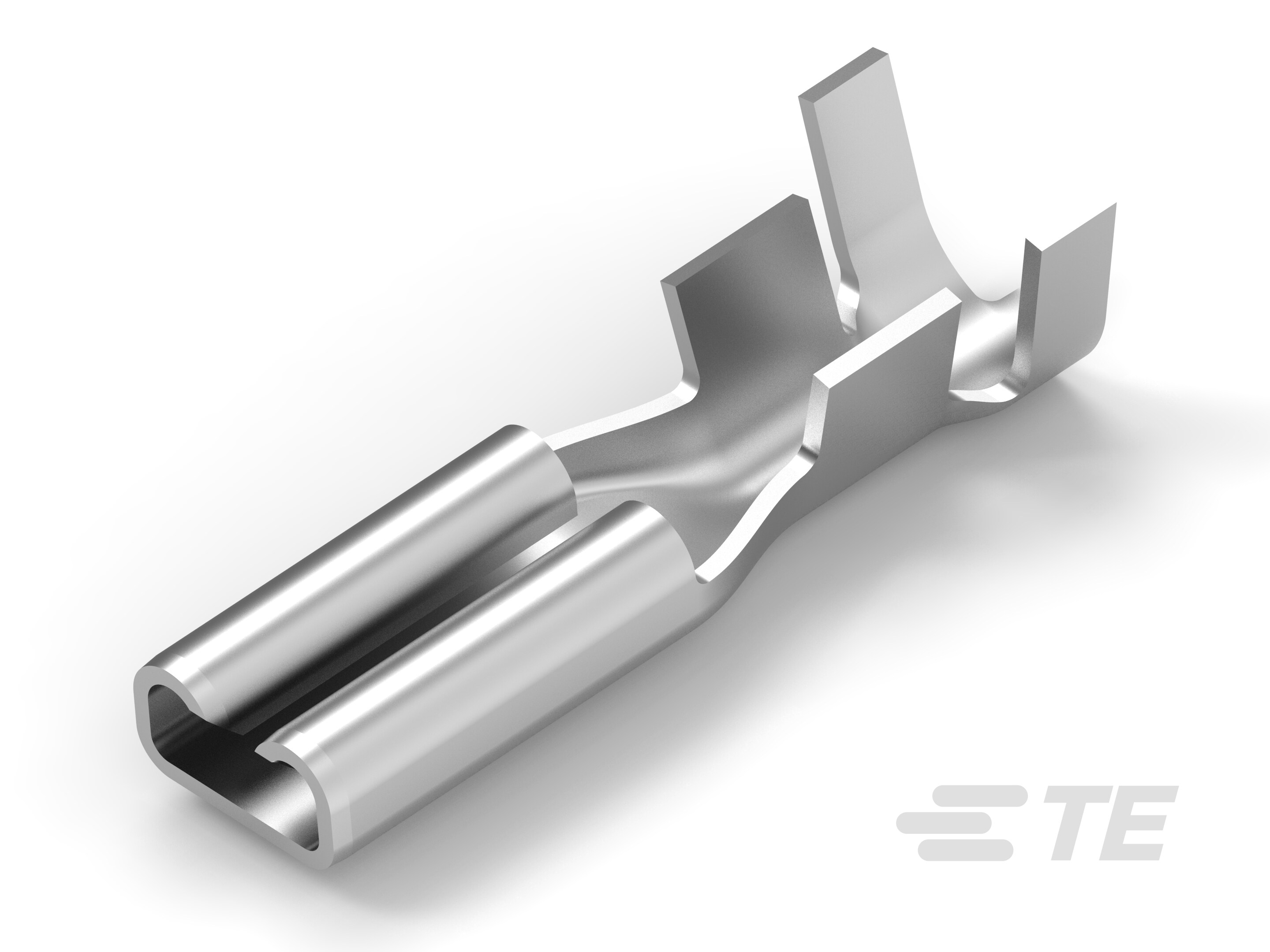

Quick Disconnect Receptacle, 20 – 15 AWG, .51 – 1.65 mm² Wire, 2.8 mm [.11 in] Tab Width, Straight, Brass, Tin Plating, Loose Piece/Carton, FASTON 110

Technical Specifications

Parameters and characteristics for this part

Specification	180441-2

Contact Finish	Tin
Contact Material	Brass
Gender	Female
Insulation	Non-Insulated
Length - Overall	0.571 in
Mounting Type	Free Hanging (In-Line)
Tab Thickness	0.02 in
Tab Width	0.11 in
Terminal Type	Standard
Termination	Crimp
Wire Gauge (AWG) (Max)	20.5 AWG
Wire Gauge (AWG) (Min)	15 AWG

FASTON 110 Series

...

Part	Insulation Diameter (Min)	Insulation Diameter (Max)	Mounting Type	Termination	Tab Thickness	Tab Length	Length - Overall	Terminal Type	Tab Width	Wire Gauge (AWG) (Max)	Wire Gauge (AWG) (Min)	Insulation	Gender
TE Connectivity AMP Connectors 170043-6	0.079 in	0.118 in	Free Hanging (In-Line)	Crimp	0.02 in	0.252 in	0.606 in	Standard	0.11 in	24 AWG	19.5 AWG	Non-Insulated	Female
TE Connectivity AMP Connectors 170043-7	0.079 in	0.118 in	Free Hanging (In-Line)	Crimp	0.02 in	0.252 in	0.606 in	Standard	0.11 in	24 AWG	19.5 AWG	Non-Insulated	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

.110,.187 & 250 Series FASTON Terminals
