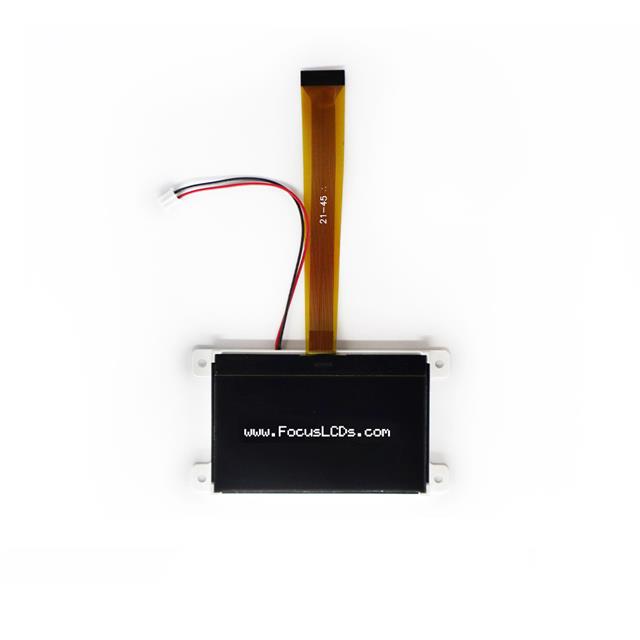

G12864A1-KW-LW63
ActiveFocus LCDs
128X64 FSTN BLACK GRAPHIC LCD
G12864A1-KW-LW63
ActiveFocus LCDs
128X64 FSTN BLACK GRAPHIC LCD
Description
General part information
G12864A1-KW-LW63
Non-Touch Graphic LCD Display Module Transmissive White FSTN - Film Super-Twisted Nematic Parallel 8-Bit, Serial 2.8" (71.12mm) 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | G12864A1-KW-LW63 |
|---|---|
| Background Color | Black |
| Backlight Color | White |
| Backlight Type | LED |
| Controller Type | Aip31565CR |
| Diagonal Screen Size | 2.8 in |
| Display Mode | Transmissive |
| Display Type | FSTN - Film Super-Twisted Nematic |
| Dot Pitch Height | 0.5 mm |
| Dot Pitch Width | 0.5 mm |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Dot Size Height | 0.48 mm |
| Dot Size Width | 0.48 mm |
| Graphics Color | White |
| Interface | Serial, Parallel 8-Bit |
| Touchscreen | Non-Touch |
| Viewing Area Height | 36.5 mm |
| Viewing Area Width | 69 mm |
