482W101-26-CA-012

Active

Cicoil

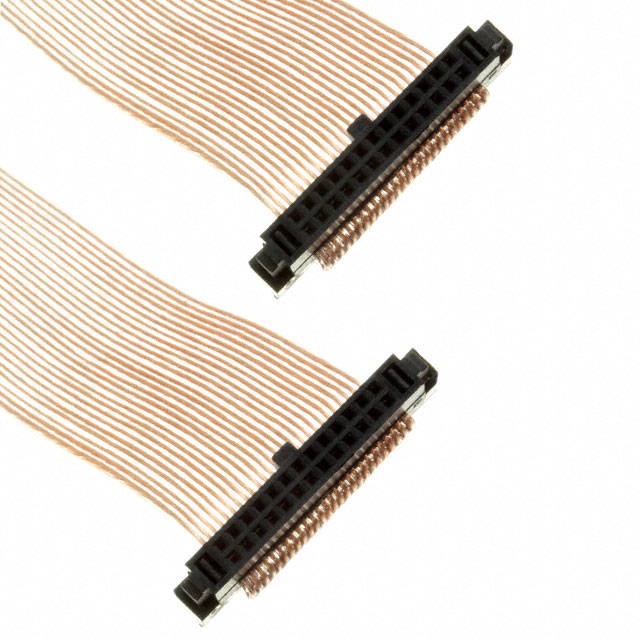

IDC RIBBON CABLE ASSMBLY 12' 26C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

482W101-26-CA-012

Active

Cicoil

IDC RIBBON CABLE ASSMBLY 12' 26C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 62.33

Description

General part information

482W101 Series

26 Position Cable Assembly Rectangular Socket to Socket 12.0' (3.66m)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	482W101-26-CA-012	482W101 Series

Cable Termination	IDC	IDC
Cable Type	-	Flat Cable
Color	Clear, Ribbon	Clear, Ribbon
Conductor Material	-	Copper, Bare
Connector Type	Socket to Socket	Socket to Socket
Current Rating (Amps)	-	0.2 A
Features	Friction Lock	Friction Lock
Jacket Color	-	Clear
Length	3.66 m	1.83 - 76.2 m
Length	12 ft	6 - 3000 ft
Length	-	3.05 - 914.4 m
Length	-	3 - 100 ft
Number of Conductors	-	10 - 34
Number of Positions	26	10 - 34
Number of Positions	-	16
Number of Rows	1	1
Operating Temperature	-	-65 ░C
Operating Temperature	-	260 ░C
Pitch	-	0.64 mm
Pitch	-	0.025 in
Pitch - Cable	0.64 mm	0.64 mm
Pitch - Cable [x]	0.025 in	0.025 in
Pitch - Connector	0.025 in	0.025 in
Pitch - Connector	0.64 mm	0.64 mm
Ribbon Thickness	-	0.026 in
Ribbon Thickness	-	0.66 mm
Ribbon Width	-	0.25 - 0.85 in
Ribbon Width	-	6.35 - 21.59 mm
Ribbon Width	-	0.5 "
Ribbon Width	-	12.7 mm
Ribbon Width	-	0.7 in
Ribbon Width	-	17.78 mm
Ribbon Width	-	8.89 mm
Ribbon Width	-	0.35 "
Shielding	Unshielded	Unshielded
Voltage	-	300 V
Wire Gauge	-	30 AWG

482W101 Series

IDC RIBBON CABLE ASSMBLY 12' 14C

Part	Pitch - Connector	Pitch - Connector	Cable Termination	Number of Rows	Features	Number of Positions	Shielding	Connector Type	Pitch - Cable [x]	Pitch - Cable	Length	Length	Color	Length [x]	Length [x]	Wire Gauge	Ribbon Thickness	Ribbon Thickness	Current Rating (Amps)	Jacket Color	Pitch [x]	Pitch [x]	Operating Temperature [Min]	Operating Temperature [Max]	Cable Type	Conductor Material	Voltage	Number of Conductors	Ribbon Width	Ribbon Width	Ribbon Width [custom]	Ribbon Width [custom]	Number of Positions
Cicoil 482W101-14-CA-012	0.025 in	0.64 mm	IDC	1	Friction Lock	14	Unshielded	Socket to Socket	0.025 in	0.64 mm	3.66 m	12 ft	Clear, Ribbon
Cicoil 482W101-16-250							Unshielded				76.2 m	3000 "		3.05 m	10 ft	30 AWG	0.026 in	0.66 mm	0.2 A	Clear	0.64 mm	0.025 in	-65 ░C	260 ░C	Flat Cable	Copper, Bare	300 V	16	0.4 in	10.16 mm
Cicoil 482W101-20-250							Unshielded				15.24 m, 76.2 m	50 ft, 3000 "		30.48 m	100 ft	30 AWG	0.026 in	0.66 mm	0.2 A	Clear	0.64 mm	0.025 in	-65 ░C	260 ░C	Flat Cable	Copper, Bare	300 V	20			0.5 "	12.7 mm
Cicoil 482W101-16-CA-012	0.025 in	0.64 mm	IDC	1	Friction Lock		Unshielded	Socket to Socket	0.025 in	0.64 mm	3.66 m	12 ft	Clear, Ribbon																				16
Cicoil 482W101-30-CA-012	0.025 in	0.64 mm	IDC	1	Friction Lock	30	Unshielded	Socket to Socket	0.025 in	0.64 mm	3.66 m	12 ft	Clear, Ribbon
Cicoil 482W101-20-CA-006	0.025 in	0.64 mm	IDC	1	Friction Lock	20	Unshielded	Socket to Socket	0.025 in	0.64 mm	1.83 m	6 ft	Clear, Ribbon
Cicoil 482W101-16-CA-006	0.025 in	0.64 mm	IDC	1	Friction Lock		Unshielded	Socket to Socket	0.025 in	0.64 mm	1.83 m	6 ft	Clear, Ribbon																				16
Cicoil 482W101-34-250							Unshielded				76.2 m	3000 "		30.48 m	100 ft	30 AWG	0.026 in	0.66 mm	0.2 A	Clear	0.64 mm	0.025 in	-65 ░C	260 ░C	Flat Cable	Copper, Bare	300 V	34	0.85 in	21.59 mm
Cicoil 482W101-26-CA-006	0.025 in	0.64 mm	IDC	1	Friction Lock	26	Unshielded	Socket to Socket	0.025 in	0.64 mm	1.83 m	6 ft	Clear, Ribbon
Cicoil 482W101-14-CA-003	0.025 in	0.64 mm	IDC	1	Friction Lock	14	Unshielded	Socket to Socket	0.025 in	0.64 mm			Clear, Ribbon	914.4 mm	3 ft
