Description
General part information

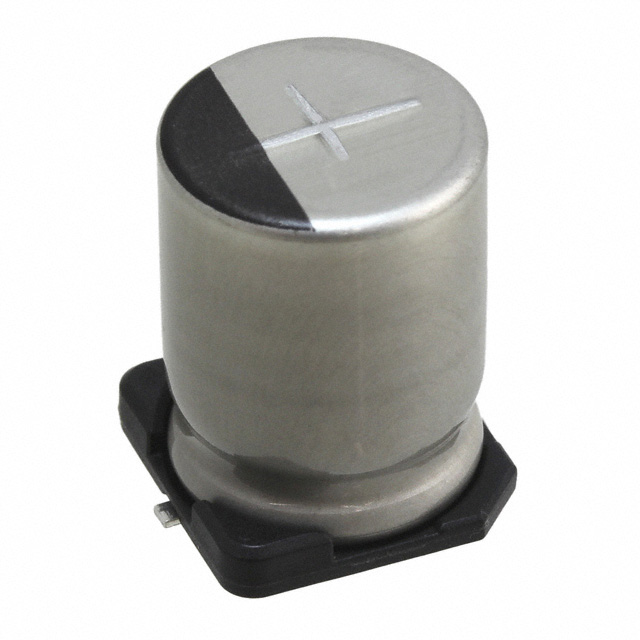

ULT2E180MNL1GS
18 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 125°C
Technical Specifications
Parameters and characteristics for this part
| Specification | ULT2E180MNL1GS |
|---|---|
| Applications | General Purpose |
| Capacitance | 18 µF |
| Height - Seated (Max) | 0.571 in |
| Lifetime | 2000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Radial, Can - SMD |
| Polarization | Polar |
| Ratings | AEC-Q200 |
| Ripple Current | 75 mA, 50 mA |
| Size / Dimension Diameter | 0.394 in |
| Surface Mount Land Length | 0.406 in |
| Surface Mount Land Width | 0.406 in |
| Tolerance | 20 % |
| Voltage - Rated | 250 V |
