Description
General part information

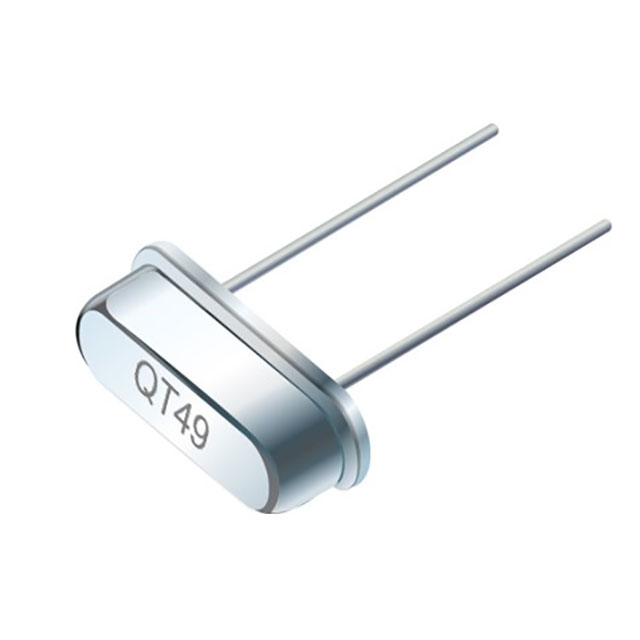

QT49-16.000MEEJ-B
16 MHz ±10ppm Crystal 18pF 30 Ohms HC-49/US
Technical Specifications
Parameters and characteristics for this part
| Specification | QT49-16.000MEEJ-B |
|---|---|
| ESR (Equivalent Series Resistance) | 30 Ohm |
| Frequency | 16 MHz |
| Frequency Stability | 10 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) | 0.145 in |
| Load Capacitance | 18 pF |
| Mounting Type | Through Hole |
| Operating Mode | Fundamental |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Package / Case | HC-49/US |
| Size / Dimension Length | 0.453 in |
| Size / Dimension Width | 0.197 in |
| Type | MHz Crystal |
