5-2425506-1
ActiveTE Connectivity AMP Connectors

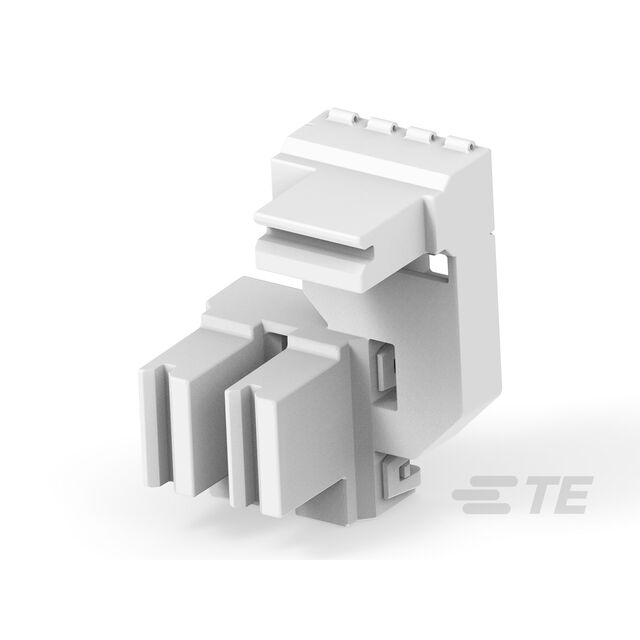

HSG, RECEP, 250 FASTON LH FLAG, 3P, T9A
5-2425506-1
ActiveTE Connectivity AMP Connectors
HSG, RECEP, 250 FASTON LH FLAG, 3P, T9A
Description
General part information
5-2425506-1
Receptacle, Receptacle, 3 Position, Flag, UL 94V-0, Natural, Nylon, Bag, -40 – 150 °C [-40 – 302 °F], Crimp Terminal Housings
Technical Specifications
Parameters and characteristics for this part
| Specification | 5-2425506-1 |
|---|---|
| Color | Natural |
| Gender | Female, Receptacle |
| Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 3 |
| Stacking Direction | Top to Bottom |
| Style | Housing |
| Terminal Size | 0.25 in |
| Terminal Type | Disconnect, Quick Connect |
