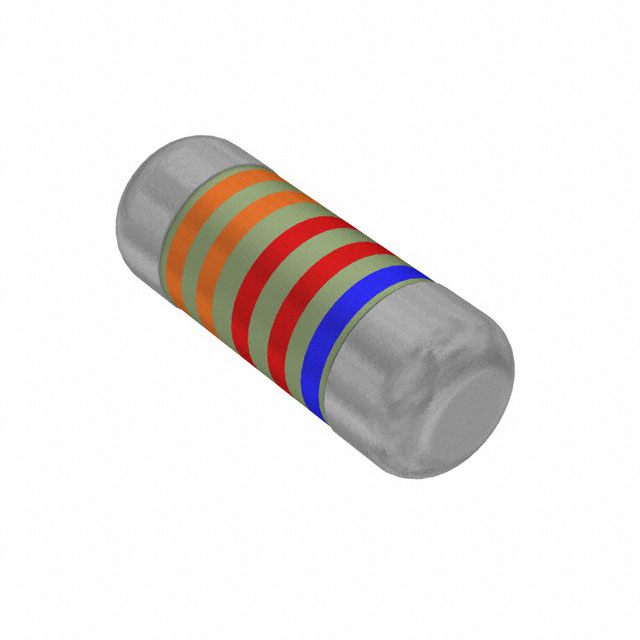

Specification	SMM02040E3329CB300

Composition	Thin Film
Features	Anti-Sulfur, Pulse Withstanding, Automotive AEC-Q200
Number of Terminations	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Package / Case	0204, MELF
Package Name	Mini MELF
Power (Watts)	250 mW
Power (Watts) Options	1/4W
Ratings	AEC-Q200
Resistance	33.2 Ohm
Size / Dimension Diameter	0.055 in
Size / Dimension Length	0.142 in
Temperature Coefficient	15 ppm/°C
Tolerance	0.25 %

SMM0204 Series

...

Part	Resistance	Composition	Package Name	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	Features	Temperature Coefficient	Number of Terminations	Power (Watts)	Power (Watts) Options	Tolerance	Size / Dimension Diameter	Size / Dimension Length	Ratings
Vishay Dale SMM02040C3923FB000	392 kOhm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in	AEC-Q200
Vishay Dale SMM02040C3161FB300	3.16 kOhm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in	AEC-Q200
Vishay Dale SMM02040C2004FB300	2 MOhm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in
Vishay Dale SMM02040C8203FB300	820 kOhm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in
Vishay Dale SMM02040C3008FB300	3 Ohm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in	AEC-Q200
Vishay Dale SMM02040C1789FB300	17.8 Ohm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in
Vishay Dale SMM02040C6818FB300	6.81 Ohms	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in	AEC-Q200
Vishay Dale SMM02040C2008FB300	2 Ohm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in
Vishay Dale SMM02040D4422BB300	44.2 kOhm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	25 ppm/°C	2	250 mW	1/4W	0.1 %	0.055 in	0.142 in	AEC-Q200
Vishay Dale SMM02040C2009FB000	20 Ohm	Thin Film	Mini MELF	125 °C	-55 °C	0204 MELF	Anti-Sulfur Automotive AEC-Q200 Pulse Withstanding	50 ppm/°C	2	250 mW	1/4W	1 %	0.055 in	0.142 in	AEC-Q200
