1406MCT
ActiveKanebridge
MACHINE SCREW - PHILLIPS & SLOTT
1406MCT
ActiveKanebridge
MACHINE SCREW - PHILLIPS & SLOTT
Description
General part information
1406MCT

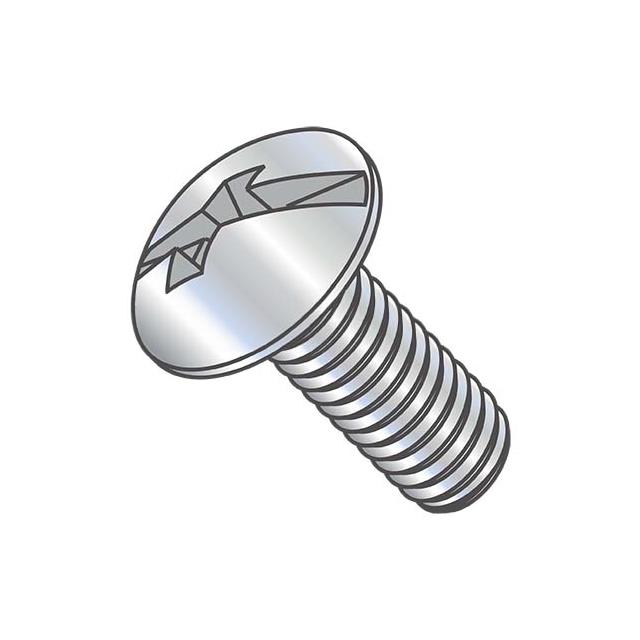

1/4"-20 Truss Head Machine Screw Phillips & Slotted Combo Drive Steel
Technical Specifications
Parameters and characteristics for this part
| Specification | 1406MCT |
|---|---|
| Drive Type | Phillips & Slotted Combo |
| Features | Standard |
| Head Diameter | 0.56 in |
| Head Height | 0.142 in |
| Length - Below Head | 0.375 in |
| Length - Overall | 0.517 in |
| Material | Steel |
| Plating | Zinc |
| Screw Head Type | Truss Head |
| Thread Pitch (TPI) | 20 TPI |
| Thread Size (Nominal) | 0.25 in |
| Type | Machine Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
