SL1720-222KR60-PF
ObsoleteTDK Corporation
FIXED IND 2.2MH 600MA 1.22OHM TH
SL1720-222KR60-PF
ObsoleteTDK Corporation
FIXED IND 2.2MH 600MA 1.22OHM TH
Description
General part information
SL1720-222KR60-PF

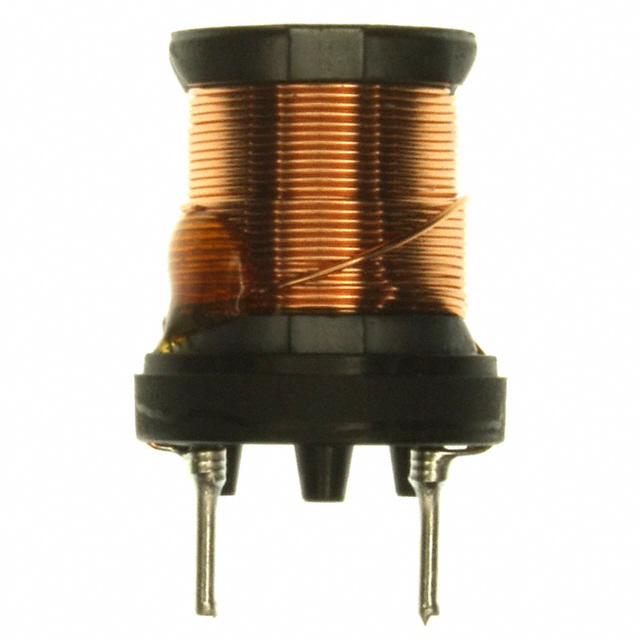

2.2 mH Unshielded Wirewound Inductor 600 mA 1.22Ohm Max Radial, Vertical Cylinder (Open)
Technical Specifications
Parameters and characteristics for this part
| Specification | SL1720-222KR60-PF |
|---|---|
| Current - Saturation (Isat) | 0.81 mA |
| Current Rating | 600 mA |
| DC Resistance (DCR) (Max) | 1.22 Ohm |
| Height - Seated (Max) | 0.827 in |
| Inductance | 2.2 mH |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Vertical Cylinder (Open), Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.665 in |
| Tolerance | 10 % |
| Type | Wirewound |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
