Description
General part information
DG9025MF2

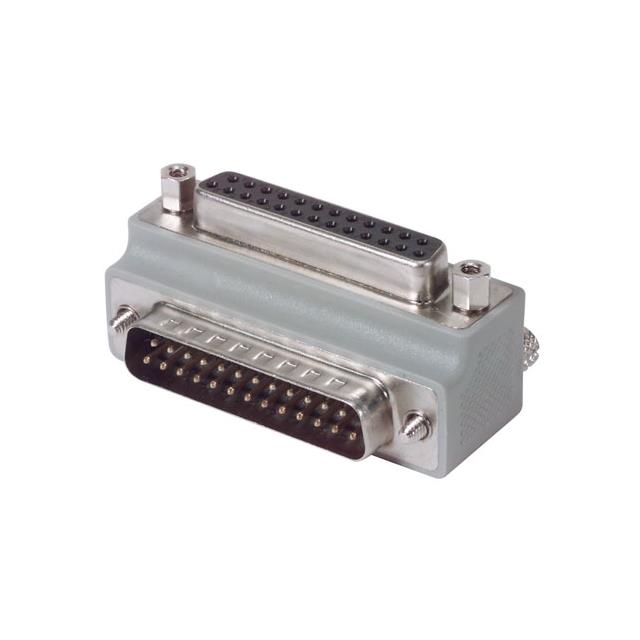

Connecting cables in tight spaces can be a problem in many applications. These low profile adapters solve this problem by allowing cables to be connected at a 90 degree angle. Three versions are available for each connector size allowing for cables to exit in opposite directions. Adapters are male to female, fully shielded and are overmolded with gray PVC. Mating hardware is reversible allowing for use in virtually any application.
Technical Specifications
Parameters and characteristics for this part
| Specification | DG9025MF2 |
|---|---|
| Connector Style | Connector Saver |
| Convert From (Adapter End) Pin Count | 25 |
| Convert From (Adapter End) Pin Gender | Male |
| Convert From (Adapter End) Type | D-Sub |
| Convert To (Adapter End) | Pin Female, D-Sub |
| Convert To (Adapter End) Pin Count | 25 pins |
| Features | Grounding Indents |
| Housing Color | Gray |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Number of Rows | 2 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -15 °C |
| Shielding | Shielded |
