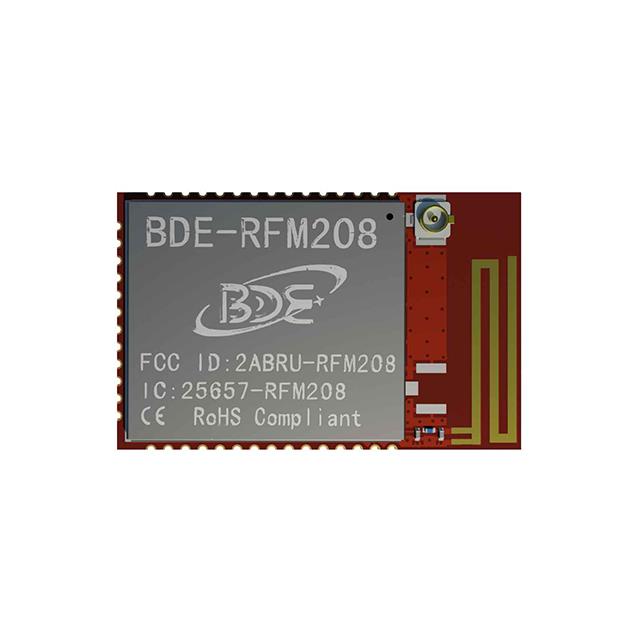

BDE-RFM208
ActiveBDE Technology
RF TXRX MOD BT INT PCB +U.FL SMD
BDE-RFM208
ActiveBDE Technology
RF TXRX MOD BT INT PCB +U.FL SMD
Description
General part information
BDE-RFM208
Bluetooth, Zigbee, Thread, Wi-SUN, Amazon Sidewalk IEEE 802.15.4, Wireless M-Bus (T, S, C, N Mode), 6LoWPAN, Wi-SUN NWP, Proprietary 2.4 GHz, Amazon Sidewalk, Bluetooth 5.0, Zigbee, Thread, MIOTY Transceiver Module 868MHz, 915MHz, 2.4GHz Integrated, PCB +U.FL Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | BDE-RFM208 |
|---|---|
| Antenna Type | PCB +U.FL, Integrated |
| Current - Receiving (Max) | 6.9 mA |
| Current - Receiving (Min) | 5.8 mA |
| Current - Transmitting (Max) | 24.9 mA |
| Current - Transmitting (Min) | 7.1 mA |
| Data Rate | 2 Mbps |
| Frequency | 2.4GHz, 868MHz, 915MHz |
| Frequency | 915 MHz, 2.4 GHz, 868 MHz |
| Memory Size | 80 kB |
| Memory Size (Flash) | 352 kB |
| Memory Type | Flash, RAM |
| Modulation | 4GFSK, 2GFSK, GFSK |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | 42-SMD Module |
| Power - Output | 14 dBm |
| Protocol | Zigbee, 6LoWPAN, IEEE 802.15.4, MIOTY, Thread, Wi-SUN NWP, Bluetooth 5.0, Wireless M-Bus (T, S, C, N Mode), Amazon Sidewalk, Proprietary 2.4 GHz |
| RF Family/Standard | Thread, Wi-SUN, Zigbee, Bluetooth, Amazon Sidewalk |
| Sensitivity | -110 dBm |
| Serial Interfaces | SPI, I2C, I2S, UART |
| Utilized IC / Part | CC1352R |
| Voltage - Supply (Maximum) | 3.8 V |
| Voltage - Supply (Minimum) | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
