RG303-TFBH-FMEF(QTY:200m)
ActiveMcGill Microwave Systems
RG303 ASSY TNC FEMALE BH-FME JAC
RG303-TFBH-FMEF(QTY:200m)
ActiveMcGill Microwave Systems
RG303 ASSY TNC FEMALE BH-FME JAC
Description
General part information
RG303-TFBH-FMEF(QTY:200m)

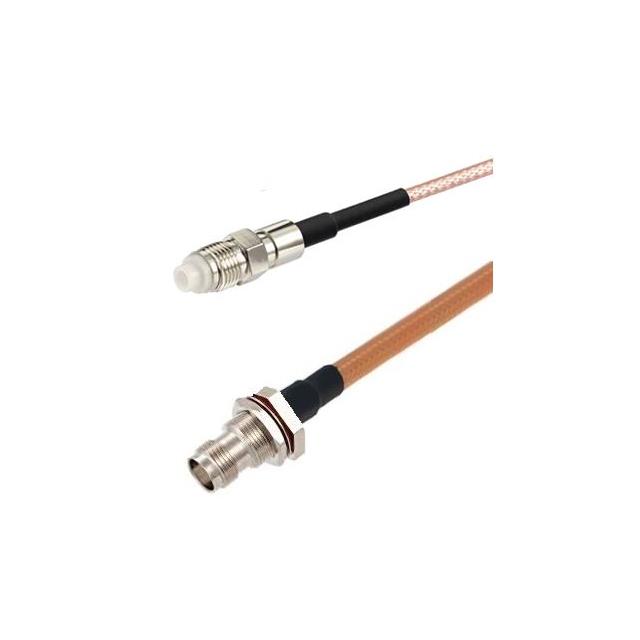

Cable Assembly Coaxial TNC to FME RG-303 7874.0" (200.0m) 656.2'
Technical Specifications
Parameters and characteristics for this part
| Specification | RG303-TFBH-FMEF(QTY:200m) |
|---|---|
| 1st Connector | TNC Jack |
| 1st Connector Mounting Feature | Front Side Nut, Bulkhead |
| 1st Connector Mounting Type | Panel Mount |
| 1st Contact Gender | Female |
| 2nd Connector | FME Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG, 303 |
| Color | Brown |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 3 GHz |
| Length | 7874 in |
| Operating Temperature (Max) | 200 °C |
| Operating Temperature (Min) | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | TNC, FME |
