CSA-140-15MX20MX4-G-151-M
ActiveKnowles Syfer
CAPACITOR, EDGE-EDGE GOLD METALL
CSA-140-15MX20MX4-G-151-M
ActiveKnowles Syfer
CAPACITOR, EDGE-EDGE GOLD METALL
Description
General part information
CSA-140-15MX20MX4-G-151-M

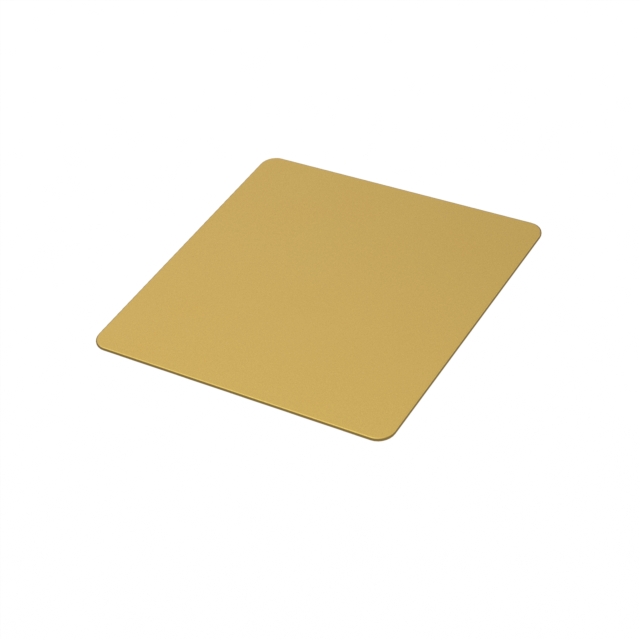

150 pF Thin Film Capacitor Nonstandard SMD
Technical Specifications
Parameters and characteristics for this part
| Specification | CSA-140-15MX20MX4-G-151-M |
|---|---|
| Capacitance | 150 pF |
| Features | General Purpose |
| Height - Seated (Max) | 0.007 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Nonstandard SMD |
| Size / Dimension Length | 0.015 in |
| Size / Dimension Width | 0.015 in |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
