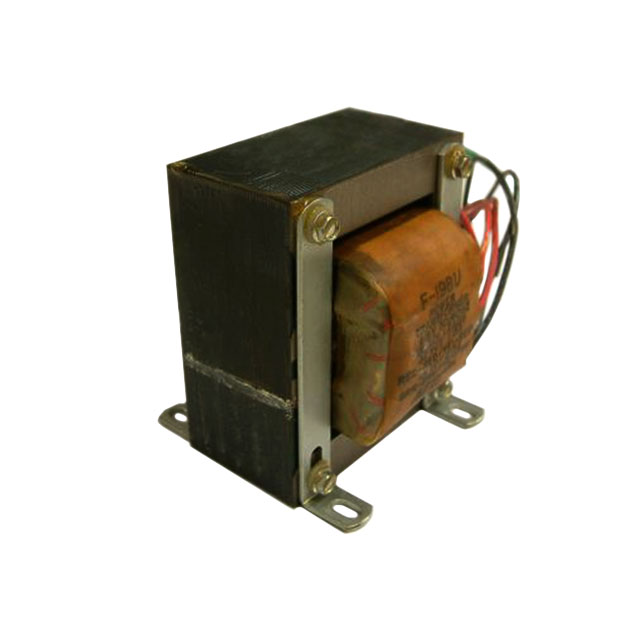

F-198U
ActiveTriad Magnetics
POWER XFMR 32.0VCT@1.0A & 15.0VCT@6.0A CHASSIS MOUNT W/LEADS ROHS COMPLIANT: NO
F-198U
ActiveTriad Magnetics
POWER XFMR 32.0VCT@1.0A & 15.0VCT@6.0A CHASSIS MOUNT W/LEADS ROHS COMPLIANT: NO
Description
General part information
F-198U
POWER XFMR 32.0VCT@1.0A & 15.0VCT@6.0A CHASSIS MOUNT W/LEADS ROHS COMPLIANT: NO
Technical Specifications
Parameters and characteristics for this part
| Specification | F-198U |
|---|---|
| Center Tap | Yes |
| Current - Output (Max) Options | 6A, 1A |
| Height - Seated (Max) | 3.75 in |
| Mounting Type | Chassis Mount |
| Power - Max | 122 W |
| Primary Winding(s) | Single |
| Secondary Winding(s) | Dual |
| Size / Dimension Length | 80.95 mm |
| Size / Dimension Width | 79.38 mm |
| Termination Style | Wire Leads |
| Type | Laminated Core |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Primary | 115 V |
| Voltage - Secondary (Full Load) | 15.5V, 32V |
| Weight | 6.2 lbs |
