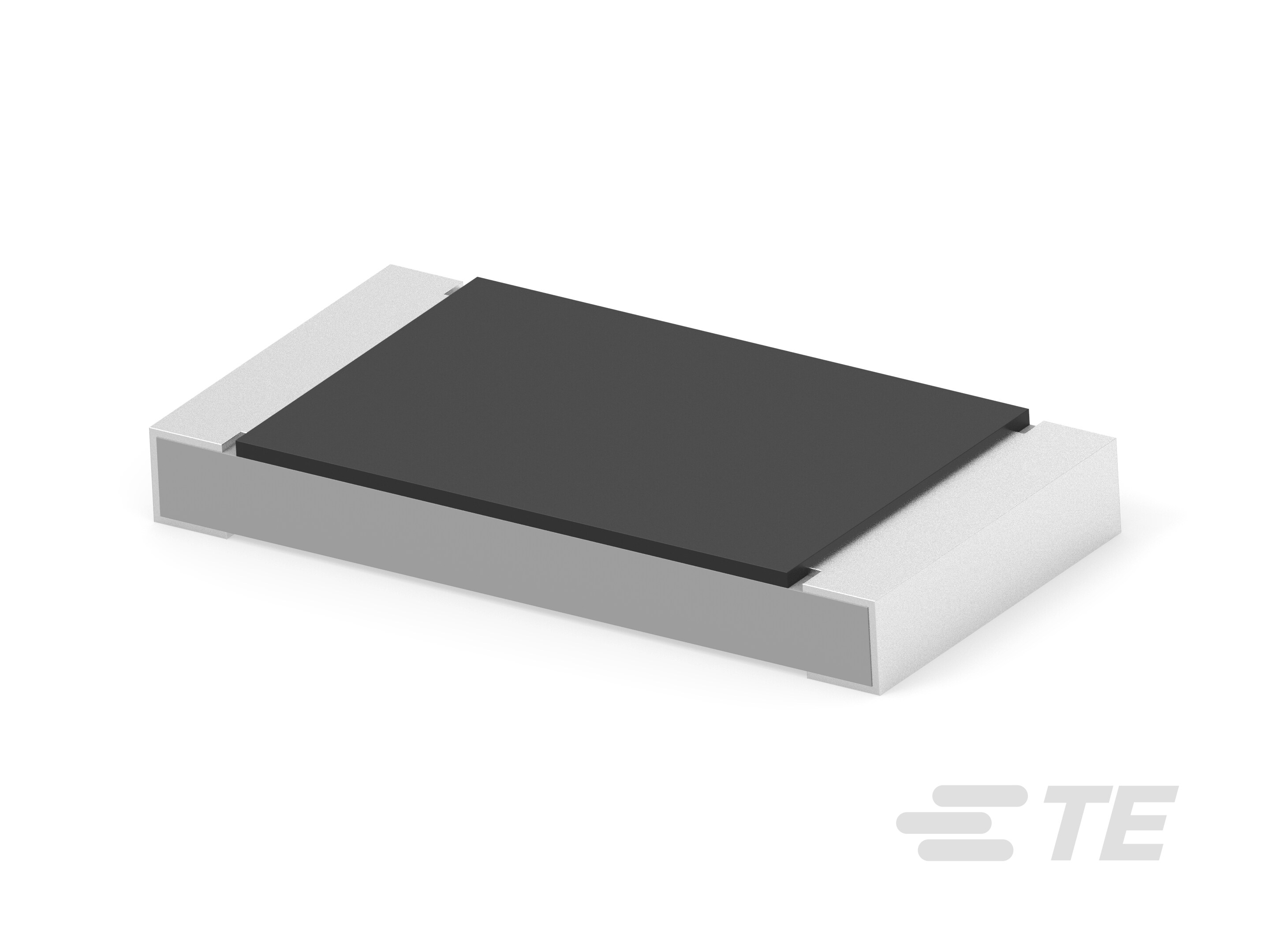

RLC73PD 2H R191 1% 1K RL-5-2176599-2

RLC73PW2HR091FTDF

Active
TE Connectivity AMP Connectors

RES, R091, 1%, 1W, 2010, THICK FILM ROHS COMPLIANT: YES

Find alt
RLC73PD 2H R191 1% 1K RL-5-2176599-2

RLC73PW2HR091FTDF

Active
TE Connectivity AMP Connectors

RES, R091, 1%, 1W, 2010, THICK FILM ROHS COMPLIANT: YES

Find alt

Description

General part information

CGS RLC73 Series

.091 ohm, Surface Mount Current Sensing Resistor, Thick Film, 2010, 1 W, 1 %, ±75 ppm/°C, Solder, 2 Terminations, .6 mm [.024 in] Height, CGS RLC73

Technical Specifications

Parameters and characteristics for this part

SpecificationRLC73PW2HR091FTDF
CompositionThick Film
FeaturesCurrent Sense
Height - Seated (Max)0.03 in
Number of Terminations2
Operating Temperature (Max)155 °C
Operating Temperature (Min)-55 °C
Package / Case2010 (5025 Metric)
Package Name2010
Power (Watts)1 W
Resistance91 mOhms
Size / Dimension Length0.197 in
Size / Dimension Width0.098 in
Temperature Coefficient75 ppm/¯C
Tolerance1 %
