710211
ActiveMcGill Microwave Systems

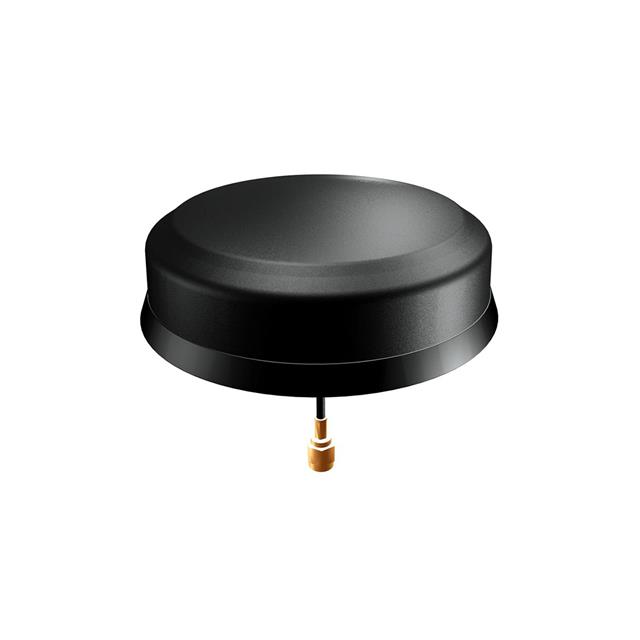

RF ANT 875MHZ MOD SMA M SCREW
710211
ActiveMcGill Microwave Systems
RF ANT 875MHZ MOD SMA M SCREW
Description
General part information
710211
RF ANTENNA 2G, 3G, 4G, NB-IoT Module SMA Male Screw Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 710211 |
|---|---|
| Antenna Type | Module |
| Applications | 4G, 3G, 2G, NB-IoT |
| Features | Cable, 2.5m |
| Frequency (Band) | 2.2 GHz |
| Frequency (Center) | 875 MHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 790 MHz |
| Frequency Range (Band 2) Maximum | 2.69 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Gain | 2.15 dBi, 3.15 dBi |
| Height (Max) | 1.024 in |
| Ingress Protection | IP67 |
| Mounting Type | Screw Mount |
| Number of Bands | 2 |
| Power - Max | 10 VA |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 3 |
