Description
General part information

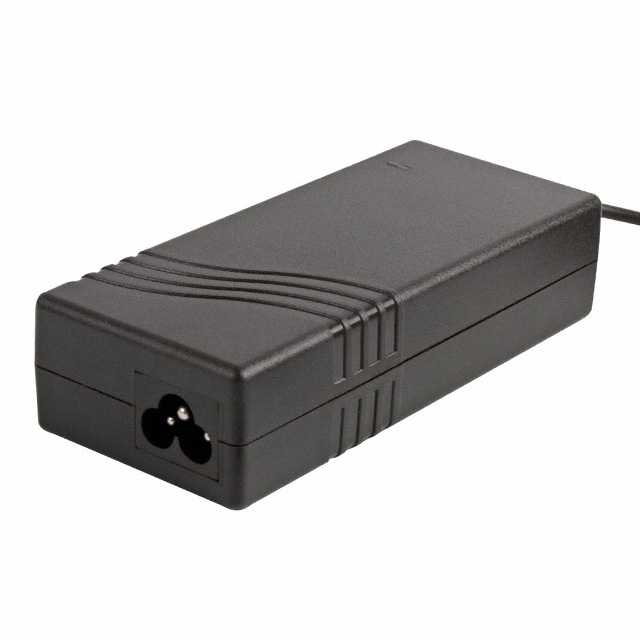

VEH90PS12
12V 90 W AC/DC External Desktop (Class I) Adapter Cord (Sold Separately) Input
Technical Specifications
Parameters and characteristics for this part
| Specification | VEH90PS12 |
|---|---|
| Applications | ITE (Commercial) |
| Cord Length | 48 in |
| Current - Output (Max) | 7.5 A |
| Efficiency | Level V |
| Form | Desktop (Class I) |
| Input Connector | IEC 320-C6 |
| Input Type | Cord (Sold Separately) |
| No Load Power Consumption (Max) | 500 mW |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | 0 °C |
| Output Connector | 4 Pin, Power DIN |
| Power (Watts) | 90 W |
| Region Utilized | International |
| Size / Dimension Height | 1.19 in |
| Size / Dimension Length | 5.24 in |
| Size / Dimension Width | 2.28 in |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Output | 12 V |
| Weight | 0.816 lb |
