UR024-010
ActiveUSB CABLE, USB TYPE A PLUG, USB TYPE A RECEPTACLE, 3 M, 10 FT, USB 2.0, BLACK

UR024-010
ActiveUSB CABLE, USB TYPE A PLUG, USB TYPE A RECEPTACLE, 3 M, 10 FT, USB 2.0, BLACK
Description
General part information
UR024-010

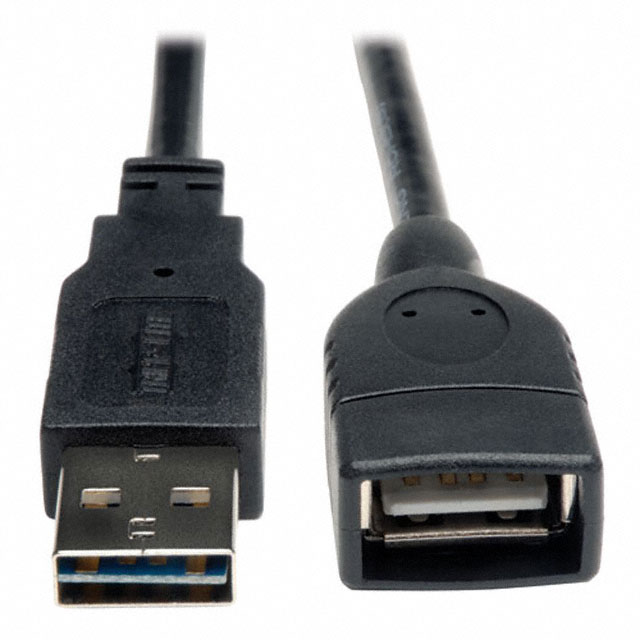

The UR024-010 is a 10ft black Universal Reversible USB 2.0 Hi-speed Extension Cable with a reversible type-A plug one end and a type-A receptacle on other end. This cable is backwards compatible and can also be used with the older USB 1.1 cables. It is made with superior foil shielding for reliable error-free data communications. It features nickel-plated connectors and gold-plated copper contacts for superior conductivity. The cable is manufactured with molded connectors and integral strain relief for extra durability and long life. The Premium double-shielded cables with tinned copper braid and aluminium Mylar foil feature twisted 28/24AWG data lines.
Technical Specifications
Parameters and characteristics for this part
| Specification | UR024-010 |
|---|---|
| Color | Black |
| Configuration | A Female to A Male |
| Features | Reversible, Data Transfer and Charge |
| Length | 10 ft |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Transfer Rate | 480 Mbps |
| Wire Gauge | 28 AWG, 24 AWG |
