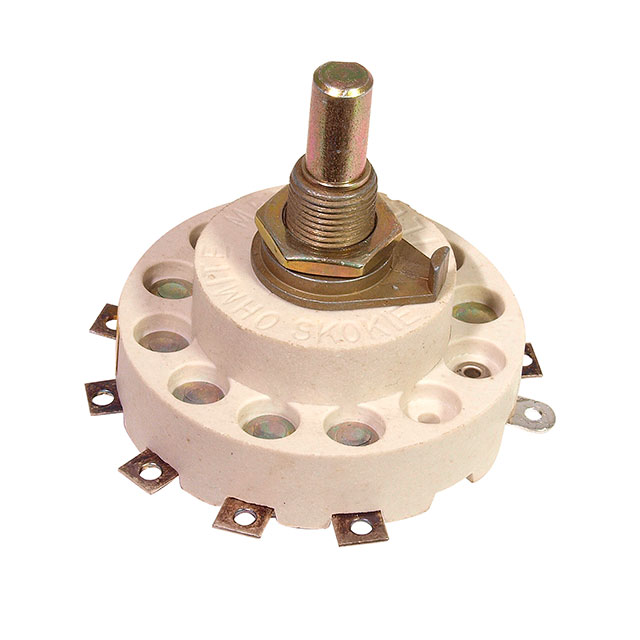

412-8E

Active

Ohmite

SWITCH ROTARY 8POS 50A 300V

Search across all available documentation for this part.

Active

Ohmite

SWITCH ROTARY 8POS 50A 300V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Rotary Switch 8 Position SP8T 50A (AC/DC) 300 VAC Panel Mount

Technical documentation and resources

No documents available

Part	Number of Positions	Actuator Type [diameter]	Actuator Type	Contact Timing	Voltage Rating - DC	Depth Behind Panel [z]	Contact Material	Termination Style	Number of Poles per Deck	Index Stops	Number of Decks	Actuator Length [x]	Voltage Rating - AC	Current Rating (Amps)	Angle of Throw	Circuit per Deck	Number of Decks [custom]	Depth Behind Panel
Ohmite 412-8T3E	8	6.35 mm	Flatted	Non-Shorting	20 V	193.7 mm	Silver Alloy	Solder Lug	1	Fixed	3	28.58 mm	300 V	50 A	30 °	SP8T
Ohmite 412-8E	8	6.35 mm	Flatted	Non-Shorting	20 V		Silver Alloy	Solder Lug	1	Fixed		28.58 mm	300 V	50 A	30 °	SP8T	1	61.9 mm
