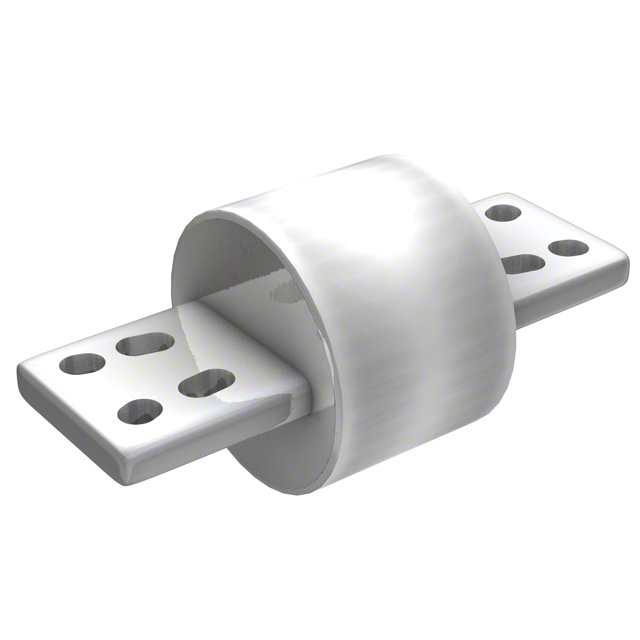

KTU-2500
ActiveEaton - Electronics Division
LIMITRON FAST ACTING FUSE CLASS L
KTU-2500
ActiveEaton - Electronics Division
LIMITRON FAST ACTING FUSE CLASS L
Description
General part information
KTU-2500
2.5kA 600 VAC Fuse Cartridge Bolt Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | KTU-2500 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | CE, UL, CSA |
| Breaking Capacity | 200 kA |
| Class | L |
| Current Rating | 2.5 kA |
| Fuse Type | Cartridge |
| Mounting Type | Bolt Mount |
| Package / Case | Blade Terminal (Bolt), Cylindrical |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 5 in |
| Size / Dimension Length | 95.25 mm |
| Voltage Rating - AC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
